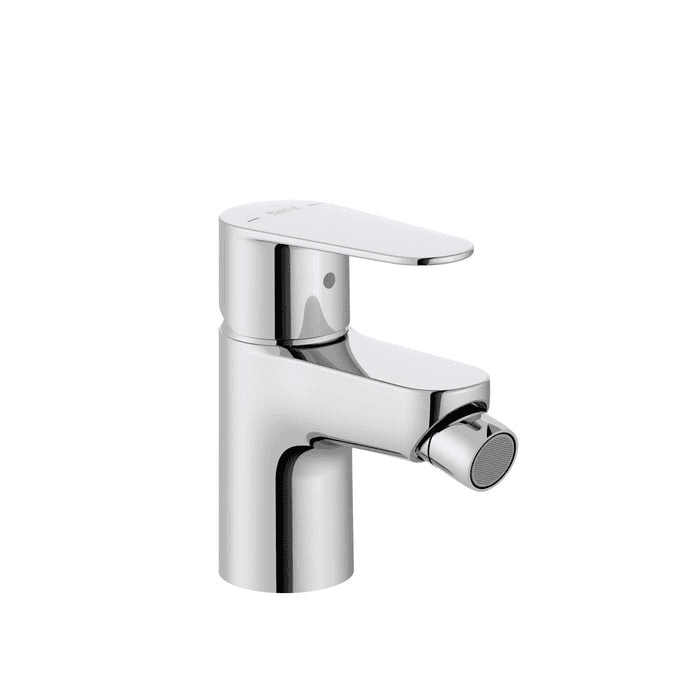

Roca Victoria Plus Smooth Body Chrome Bidet Tap

The Roca Victoria Plus A5A624FC00 bidet faucet is a single-lever mixer with a smooth body and chrome finish, designed for deck-mounted installation on a bidet. It combines a compact, streamlined design with a ceramic cartridge, flow limiter, and included flexible supply hoses, offering a practical solution to complete bathroom fittings.

This reference belongs to the Roca Victoria Plus collection and delivers a nominal flow rate of 8 liters per minute at 3 bar. It incorporates Roca Evershine and SoftTurn technologies, a fixed spout, and a ball-joint aerator that allows the water jet to be directed. The waste valve is not included.

Roca Victoria Plus single-lever bidet faucet

Reference A5A624FC00 is specifically designed for use on a bidet. Its single-lever configuration allows you to control both the flow rate and the mix of hot and cold water from a single handle.

The handle is located on the top of the body, providing direct operation and a clean look that matches the distinctive design of the Victoria Plus collection.

Chrome finish

The faucet comes in Roca C0 chrome finish, a bright surface designed to match other accessories, valves, and metal elements commonly found in the bathroom.

Roca identifies this reference with Evershine technology, integrated into its tapware solutions to preserve the characteristic appearance of the chrome surface.

Ceramic cartridge with SoftTurn technology

The Roca Victoria Plus A5A624FC00 includes a ceramic cartridge and is identified by the manufacturer with SoftTurn technology.

The cartridge is the component responsible for regulating water flow and mixing through the movement of the top handle, allowing temperature and flow to be controlled from a single lever.

Flow rate of 8 liters per minute

Roca states a flow rate of 8 liters per minute at a pressure of 3 bar for this faucet.

• Nominal flow rate: 8 liters per minute.
• Reference pressure: 3 bar.
• Flow limiter: included.
• Unified Water Label: 8 liters per minute.

The integrated limiter helps control the water flow during normal bidet use.

Ball-joint aerator for directing the jet

Although the spout is fixed, Roca equips this reference with a ball-joint aerator. This element allows the direction of the water jet to be adjusted for better bidet use.

The aerator is also available as an independent spare part in Roca’s official catalog for this reference.

Fixed spout and smooth body

The A5A624FC00 features a fixed spout integrated into a body with soft, compact lines. The smooth-body designation means this version does not include the mechanism for operating an automatic waste at the rear of the faucet.

This helps maintain a simple, uncluttered look, especially suitable when the bidet uses a separate waste valve.

Waste not included

This reference is supplied without a waste valve. Therefore, the corresponding valve must be selected separately depending on the bidet and the installation requirements.

Within the Victoria Plus family there is also a specific version with an automatic waste, so it is important to distinguish between both references when placing an order.

Deck-mounted installation

The faucet is designed for deck-mounted installation, meaning it is fitted directly onto the tap hole in the bidet.

• Installation location: bidet.
• Installation type: deck-mounted.
• Tap type: single-lever.
• Handle position: top.

Before installation, compatibility between the bidet hole, the space available under the ceramic, and the existing water connections should be checked.

Included flexible supply hoses

Roca supplies the A5A624FC00 with flexible hoses for hot and cold water supply.

• Connection thread to installation: 3/8 inch.
• Connection to body: M8.
• Approximate hose length: 420 mm.
• Number of hoses: 2.

The included hoses make it easier to connect the faucet to angle valves or supply points in the installation.

Compact dimensions

Roca’s official technical drawing shows a compact design suitable for bidets with deck-mounted tapware.

• Approximate faucet height: 125 mm.
• Base diameter: approximately 45 mm.
• Hose length: 420 mm.
• Indicated outlet angle: 15 degrees.

These dimensions make it possible to check installation space in advance and the relationship between the faucet and the bidet geometry.

Roca Victoria Plus collection

Victoria Plus reinterprets Roca’s well-known Victoria collection with a more streamlined and slender design. The range maintains a neutral, versatile aesthetic to make it easy to integrate into bathrooms of different styles.

The cylindrical body shape, the smooth top lever, and the chrome finish allow this tapware to be combined with numerous bidet models and other Roca sanitary fittings.

Spare parts identified by Roca

Roca keeps the exploded view for reference A5A624FC00 identified, making it easier to locate replacement components for maintenance work.

Officially associated spare parts include:

• Ball-joint aerator for bidet tapware.
• 26 mm ceramic cartridge.
• Victoria Plus handle.
• Cartridge nut.
• Set of M8 × 3/8 inch 420 mm flexible hoses.
• Fixing elements.

The availability of reference-identified spare parts makes repair and maintenance operations easier.

Technical features of the Roca A5A624FC00 faucet

• Brand: Roca.
• Collection: Victoria Plus.
• Reference: A5A624FC00.
• Product type: bidet faucet.
• Tap type: single-lever.
• Body design: smooth.
• Finish: chrome.
• Finish code: C0.
• Installation location: bidet.
• Installation type: deck-mounted.
• Handle position: top.
• Cartridge type: ceramic.
• Technology: SoftTurn.
• Technology finish: Evershine.
• Flow rate: 8 liters per minute at 3 bar.
• Flow limiter: yes.
• Spout: fixed.
• Ball-joint aerator: yes.
• Supply thread: 3/8 inch.
• Flexible hoses: included.
• Approximate hose length: 420 mm.
• Flexible hose connection to body: M8.
• Approximate height: 125 mm.
• Approximate base diameter: 45 mm.
• Waste type: not included.
• Unified Water Label: 8 liters per minute.

What the A5A624FC00 reference includes

The package includes the Roca Victoria Plus single-lever bidet faucet, its flexible water connection hoses, and the tapware mounting elements.

The waste valve is not included, so it must be purchased separately if needed to complete the installation.

Compact and functional chrome bidet faucet

The Roca Victoria Plus A5A624FC00 combines a ceramic cartridge, flow limiter, ball-joint adjustable aerator, and included supply hoses in a compact single-lever faucet with a chrome finish.

Its 8 liters per minute flow rate, 3/8 inch connection, deck-mounted installation, and Evershine and SoftTurn technologies make it a practical solution for completing a bidet with Roca tapware featuring simple lines and easy integration.
