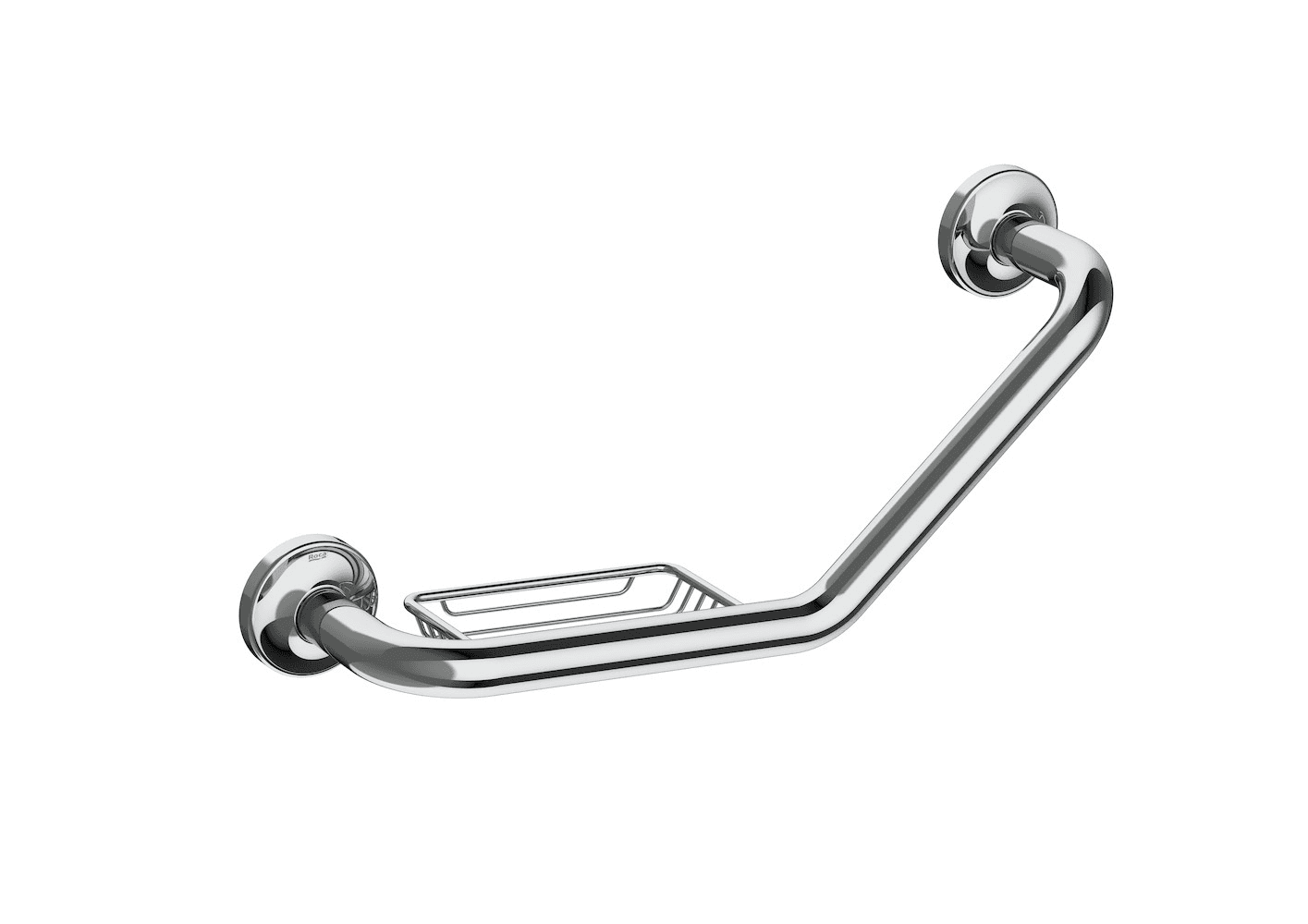

135º Angular Bathroom Grab Bar with Soap Dish Chrome Finish Roca Access

The Roca Access A816936001 angled bathroom grab bar is a 135-degree wall-mounted support rail with an integrated soap dish, designed to provide a firm and functional support point in accessible bathrooms. It is made of stainless steel with a glossy finish and belongs to Roca’s Access collection, specially designed for spaces intended for people with reduced mobility.

Its angled design combines two support sections in a single bar, while the integrated soap dish keeps soap or other hygiene items within easy reach of the user. Roca states a maximum load capacity of 150 kilograms, a grip diameter of 32 millimeters, and a 50-millimeter gap between the bar and the wall.

Roca Access 135-degree angled bathroom grab bar

The A816936001 reference features an angled geometry of 135 degrees. This layout provides different gripping areas within a single bar and makes it easier to integrate into spaces where a continuous wall-mounted support point is needed.

• Shape: angled.
• Angle: 135 degrees.
• Installation: wall-mounted.
• Soap dish: integrated.

Designed for accessible bathrooms

The Roca Access collection is aimed at bathroom spaces intended for people with reduced mobility and at installations where ergonomic and durable support elements are required.

The grab bar can be used as an auxiliary support element inside the bathroom, always installed on a surface capable of properly withstanding the transmitted loads.

Integrated soap dish

This version includes an integrated soap dish built into the grab bar structure itself, allowing the hygiene product to be kept close to the support area.

This configuration combines the function of a support rail and a space for soap in a single element, reducing the need to install separate accessories in the same area.

Made of stainless steel

Roca manufactures this bar in stainless steel, a material especially suitable for accessories used in humid environments such as bathrooms and shower areas.

• Material: stainless steel.
• Finish: glossy.
• Roca finish code: 01.

The shiny metallic finish also makes it easy to combine with other accessories, taps, and chrome bathroom fittings.

32-millimeter grip diameter

The bar has a 32-millimeter diameter. This size provides a section designed to be held by hand and is maintained לאורך the main sections of the grab bar.

50-millimeter wall clearance

Roca specifies a 50-millimeter free space between the bar and the wall. This distance allows the hand to fit around the tube for use as a support point.

• Grab bar diameter: 32 millimeters.
• Free space between bar and wall: 50 millimeters.

Load capacity of up to 150 kilograms

The manufacturer states a maximum supported weight of 150 kilograms for the A816936001 when the bar is correctly installed.

The final strength of the assembly also depends on the type of wall, its condition, the anchoring system used, and the correct execution of the installation. The mounting surface must be suitable for the expected loads.

Wall-mounted installation

The grab bar is designed to be installed directly on the wall. Roca indicates two fixing points for this reference and supplies the corresponding fixing set.

• Installation type: wall-mounted.
• Number of fixing points indicated by Roca: 2.
• Fixing set: included.

Before installation, it should be checked that the structural support provides the necessary strength and that the selected position allows the grab bar to be used comfortably and safely.

Dimensions of the Roca A816936001 grab bar

Roca publishes the following overall dimensions:

• Length: 538 millimeters.
• Width: 140 millimeters.
• Height: 271 millimeters.
• Bar diameter: 32 millimeters.
• Wall clearance: 50 millimeters.

These dimensions make it possible to check the available space in advance and properly plan its position on the wall.

Anti-vandal design

Roca identifies this reference as anti-vandal. This feature makes it especially suitable for installations where robust, firmly anchored accessories are required, such as collective, public, or high-use bathrooms.

Roca Access collection

Access is Roca’s collection aimed at adapted bathrooms and users who need specific accessibility solutions. The range includes sanitary ware, support bars, shower seats, and other accessories designed to improve the functionality of the bathroom space.

The A816936001 combines this functional approach with a glossy finish and an angled geometry that allows it to be integrated into different bathroom configurations.

Technical features of the Roca Access A816936001 grab bar

• Brand: Roca.
• Collection: Access.
• Roca designation: Comfort / PRO.
• Reference: A816936001.
• Product type: bathroom grab bar or support rail.
• Shape: angled.
• Angle: 135 degrees.
• Soap dish: integrated.
• Material: stainless steel.
• Finish: glossy.
• Length: 538 millimeters.
• Width: 140 millimeters.
• Height: 271 millimeters.
• Grab bar diameter: 32 millimeters.
• Free space between bar and wall: 50 millimeters.
• Maximum supported weight: 150 kilograms.
• Installation: wall-mounted.
• Number of fixing points: 2.
• Fixing set: included.
• Anti-vandal design: yes.
• Application: adapted bathrooms and spaces for people with reduced mobility.

Angled support rail with soap dish for adapted bathrooms

The Roca Access A816936001 grab bar combines a 135-degree angled structure, integrated soap dish, and stainless steel construction in a solution designed to improve support inside the bathroom.

Its load capacity of up to 150 kilograms, 32-millimeter diameter, 50-millimeter wall clearance, glossy finish, and included fixings make it a particularly suitable option for adapted bathrooms and spaces where a robust and functional support accessory is required.
