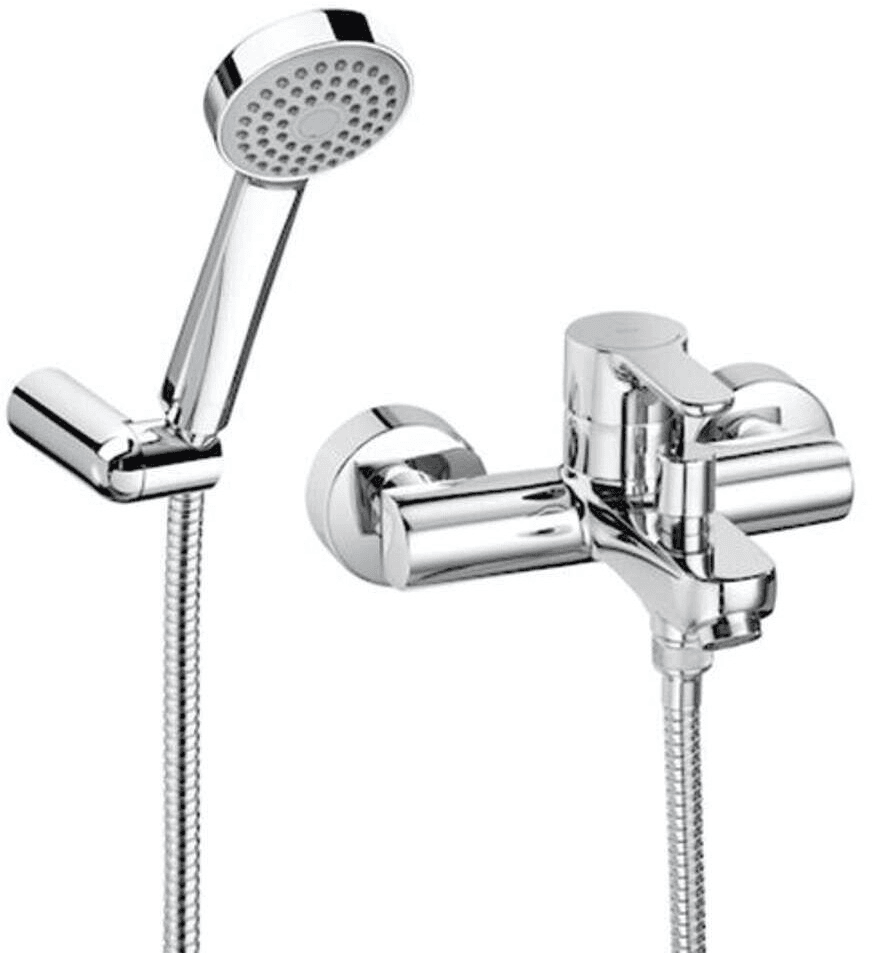

Roca L20 Single Lever Shower and Bath Set

The Roca L20 A5A0109C02 single-lever bath and shower mixer set is a complete exposed bath-shower tap solution, with a chrome finish and control via a single lever. The set includes an automatic diverter, a Roca Stella single-function hand shower, a 1.70-meter metal shower hose, and an articulated wall bracket for the hand shower.

Designed for wall-mounted installation, it allows you to select the water outlet between the bath spout and the hand shower. Its ceramic cartridge makes it easy to regulate flow and temperature together, while the articulated bracket lets you adjust the hand shower when it is placed on the wall.

Roca L20 single-lever bath and shower tap

Reference A5A0109C02 belongs to the Roca L20 collection and is designed for bath-shower installations where bath filling needs to be combined with the use of a hand shower.

• Brand: Roca.
• Collection: L20.
• Reference: A5A0109C02.
• Type: exposed bath-shower tap.
• Tap type: single-lever.
• Installation: wall-mounted.
• Finish: chrome.

Complete set with hand shower, hose and bracket

Roca supplies this reference as a set ready to complete the bath-shower area. It includes:

• Roca L20 exposed single-lever bath-shower mixer.
• Roca Stella 80/1 hand shower.
• 1.70-meter metal shower hose.
• Articulated hand shower bracket.

This means the main components needed to use the tap in both bath and shower mode are supplied together.

Automatic bath-shower diverter

The tap incorporates an automatic diverter that directs the water to the corresponding outlet.

This element allows you to switch between the bath spout and the hand shower without needing to install a separate selector.

Ceramic cartridge

The mixer uses a ceramic cartridge to control flow and the mixing of hot and cold water from a single lever.

The upper lever position makes the tap easy to operate during everyday use of the bath or shower.

Flow rate of 9.4 liters per minute

Roca’s current online technical sheet states a flow rate of 9.4 liters per minute at 3 bar pressure for reference A5A0109C02.

• Flow rate: 9.4 liters per minute.
• Reference pressure: 3 bar.
• Unified Water Label: 9.4 liters per minute.

The actual flow rate of an installation may vary depending on the available pressure and the characteristics of the plumbing system.

Roca Stella 80 mm hand shower

The set includes the Roca Stella A5B9103C00 hand shower, with a circular shape and a single water outlet function.

• Hand shower diameter: 80 mm.
• Number of functions: 1.
• Spray type: Rain.
• Shape: circular.
• Finish: chrome.
• Approximate dimensions: 235 × 84 × 38 mm.

Hand shower with Easyclean system

The included Stella hand shower features Roca’s Easyclean® technology, designed to make it easier to clean the water outlets.

This feature helps with routine hand shower maintenance, especially in installations where mineral deposits may build up on the water outlets.

Single-function Rain spray

The hand shower has a single Rain function, designed to provide an even water distribution during showering.

As it is a single-function model, the user does not need to choose between different spray patterns.

1.70-meter metal hose

The set includes a 1.70-meter metal shower hose that connects the tap to the hand shower.

Its length allows comfortable use of the hand shower from different positions within the bath or shower area.

Articulated shower bracket

The hand shower can be placed in the included articulated bracket. This setup keeps the hand shower fixed to the wall and allows its angle to be adjusted according to the user’s needs.

Wall-mounted installation

The Roca L20 A5A0109C02 is designed for exposed wall-mounted installation. The tap body remains visible on the wall and connects to the hot and cold water inlets of the installation.

• Installation type: exposed wall-mounted.
• Installation location: bath and shower.
• Connections indicated in the technical drawing: G 1/2.
• Nominal distance between inlets: 150 mm.

Roca’s technical drawing provides for adjustment of the mounting distance through the installation connections, within the manufacturer’s specified limits.

Chrome finish

Reference A5A0109C02 corresponds to Roca’s C0 chrome finish. Its glossy surface makes it easy to combine with other accessories, fittings and common metal bathroom elements.

Roca L20 collection

L20 is a Roca tap collection characterized by a simple, contemporary design, intended to blend into different bathroom styles.

The A5A0109C02 version combines the bath-shower tap and the accessories needed to use a hand shower in a single reference, avoiding the need to select these main components separately.

Spare parts identified by Roca

Roca maintains a specific exploded view for reference A5A0109C02, making it easier to identify components for maintenance and repair.

Among the spare parts associated by the manufacturer are:

• Tap cap.
• Cartridge nut.
• Diverter knob.
• Aerator.
• Diverter for bath-shower mixer.
• Non-return valves.
• Connection escutcheons.
• Compatible Stella hand shower.

Technical features of the Roca L20 A5A0109C02 set

• Brand: Roca.
• Collection: L20.
• Reference: A5A0109C02.
• Application: bath-shower.
• Tap type: single-lever.
• Installation type: wall-mounted.
• Finish: chrome.
• Finish code: C0.
• Cartridge: ceramic.
• Lever position: top.
• Diverter: automatic.
• Current declared flow rate: 9.4 liters per minute at 3 bar.
• Hand shower: Roca Stella 80/1.
• Hand shower diameter: 80 mm.
• Hand shower functions: 1.
• Spray type: Rain.
• Easyclean system: yes, on the hand shower.
• Hose: metal.
• Hose length: 1.70 meters.
• Hand shower bracket: articulated.
• Connections indicated: G 1/2.
• Nominal distance between inlets: 150 mm.

Complete single-lever set for bath and shower

The Roca L20 A5A0109C02 combines in a single reference an exposed single-lever bath-shower mixer, automatic diverter, and a shower set made up of a Stella hand shower, 1.70-meter metal hose and articulated bracket.

Its ceramic cartridge, chrome finish, Rain spray hand shower and Easyclean system, together with wall-mounted installation and the included accessories, provide a complete solution for fitting baths that are also used as a shower area.
