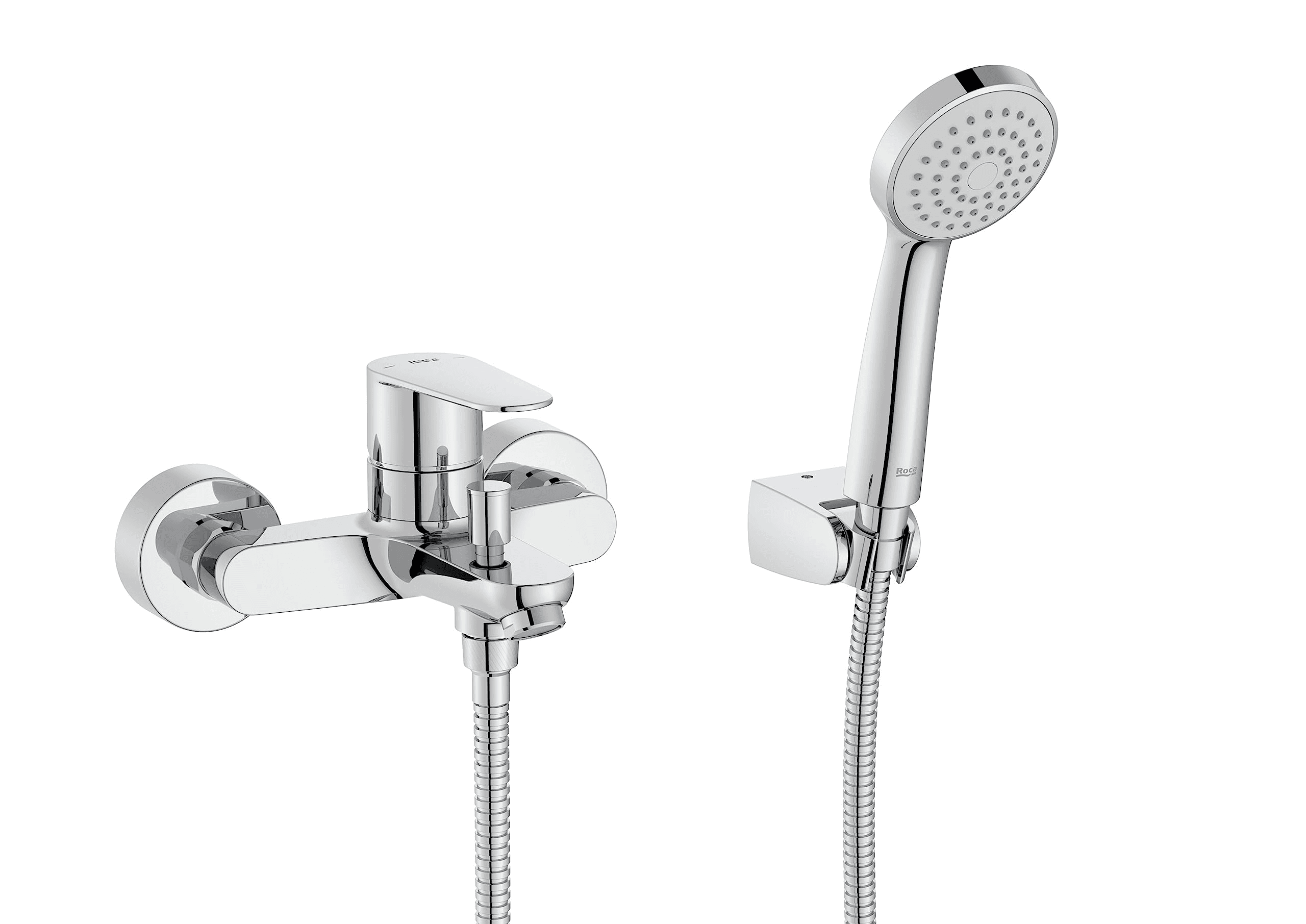

Roca Victoria Plus Single-Lever Shower and Bath Set

The Roca Victoria Plus A5A014FC00 bath-shower mixer set is a complete solution for installation on a bathtub, consisting of an exposed wall-mounted tap, Natura hand shower, 1.70-meter hose, and articulated shower holder. Its chrome finish and the sleek design of the Victoria Plus collection make it easy to integrate into bathrooms of different styles.

The tap features a ceramic cartridge, fixed spout, and automatic diverter to switch between the bathtub outlet and the hand shower. It also includes eccentric connectors for wall mounting and incorporates Roca SoftTurn and Evershine technologies, designed respectively to provide smooth single-lever operation and preserve the qualities of the chrome finish.

Roca Victoria Plus set for bathtub and shower

Reference A5A014FC00 belongs to the Roca Victoria Plus collection and is designed to equip a bathtub with a tap that allows use of both the bath spout and a hand shower.

The set brings together the main components needed for this installation:

• Exposed single-lever bath-shower tap.
• Roca Natura one-function hand shower.
• 1.70-meter shower hose.
• Articulated wall-mounted shower holder.
• Eccentric connectors for wall connection.

Single-lever tap with ceramic cartridge

The Victoria Plus A5A014FC00 uses a ceramic cartridge to control the flow and mix of hot and cold water from a single lever located on the top of the body.

This configuration makes it easy to regulate temperature and flow with one control, simplifying everyday use both when filling the bathtub and when using the hand shower.

Roca SoftTurn technology

Roca identifies this model with SoftTurn technology, associated with the operation of the ceramic cartridge and the smooth movement of the control lever.

The lever allows you to regulate both water temperature and flow from a single point, offering simple control of the tap during use.

Automatic bath-shower diverter

The tap incorporates an automatic diverter to select the water outlet between the bathtub spout and the hand shower.

This system integrates both functions into the same tap body, avoiding the need to install a separate selector.

Fixed spout for bathtub filling

The outlet intended for the bathtub uses a fixed spout. According to Roca’s technical drawing, the overall projection reaches approximately 158 millimeters and the spout has an indicated length of approximately 120 millimeters.

The technical drawing also shows an inclination of approximately 30 degrees at the spout outlet.

Roca Natura hand shower included

The set includes a Roca Natura one-function hand shower. This hand shower is part of the original equipment specified by the manufacturer for reference A5A014FC00.

The single-function design simplifies shower use, providing a direct water outlet without the need to select different spray patterns.

1.70-meter shower hose

Roca specifies for this set a 1.70-meter shower hose. This length provides freedom of movement for comfortable use of the hand shower inside the bathtub.

The hose length is especially practical for personal rinsing, cleaning the bathtub, and other common hand-shower uses.

Articulated shower holder

The hand shower is complemented by an articulated wall-mounted holder. Unlike a completely fixed holder, this element allows the orientation of the hand shower to be adjusted when it is placed on the wall.

The user can therefore adjust the position of the hand shower according to their preferences and the layout of the bathing area.

Exposed wall installation

The Roca Victoria Plus A5A014FC00 is designed for an exposed wall-mounted installation. The tap body remains visible and connects directly to the hot and cold water outlets installed in the wall.

• Installation type: wall-mounted.
• Installation location: bathtub.
• Water inlet thread: 1/2 inch.
• Eccentric connectors: included.

Standard distance between outlets

The official technical drawing establishes a nominal distance of 150 millimeters between outlets.

Thanks to the included eccentric connectors, Roca allows an approximate adjustment range between:

• Minimum spacing: 134 millimeters.
• Nominal spacing: 150 millimeters.
• Maximum spacing: 166 millimeters.

This range makes installation easier on existing wall-mounted systems whose outlets differ slightly from the nominal measurement.

Roca chrome finish

The full reference A5A014FC00 corresponds to Roca’s C0 chrome finish.

Its glossy finish makes it easy to combine with shower accessories, drains, and other common metal bathroom fittings.

Evershine technology

Roca identifies this tap with Evershine technology, applied to its chrome finishes to preserve their characteristic appearance during everyday use.

For routine maintenance, it is advisable to use cleaning products suitable for chrome taps and avoid abrasive materials that could damage the surface.

Roca Victoria Plus tap dimensions

The official technical drawing for reference A5A014FC00 shows the following main dimensions:

• Approximate body width: 267 millimeters.
• Approximate maximum height: 168 millimeters.
• Nominal distance between outlets: 150 millimeters.
• Outlet spacing range: from 134 to 166 millimeters.
• Rosette diameter: approximately 65 millimeters.
• Approximate maximum projection: 158 millimeters.
• Indicated spout length: approximately 120 millimeters.
• Connection thread: G 1/2.

These measurements make it possible to check tap compatibility with existing connections before carrying out a replacement or renovation.

Waste not included

Roca expressly states that reference A5A014FC00 is supplied without a waste valve.

If the bathtub requires a waste valve or a fill-and-drain set, this item must be selected separately according to the bathtub model and the installation characteristics.

Roca Victoria Plus collection

Victoria Plus updates the look of one of Roca’s most versatile families with slimmer, more streamlined lines. This tap retains a simple, neutral design that makes it easy to combine with many bathtub styles and bathroom fittings.

The compact body shape, top lever, and chrome finish provide visual continuity with other basin, bidet, and shower taps in the same collection.

Spare parts identified by Roca

Roca maintains a specific exploded view for reference A5A014FC00, making it easier to identify components for future maintenance work.

Officially associated spare parts include:

• Victoria Plus lever handle.
• Ceramic cartridge and fixing elements.
• Connection eccentric connectors.
• Chrome rosettes.
• 1.70-meter shower hose.
• Natura one-function hand shower.
• Articulated wall holder.
• Diverter, knob, and non-return valve kit.

The ability to identify the exploded-view components makes repairs easier and avoids replacing the entire set when only one part needs to be renewed.

Technical features of the Roca Victoria Plus A5A014FC00

• Brand: Roca.
• Collection: Victoria Plus.
• Reference: A5A014FC00.
• Product type: bath-shower tap set.
• Tap type: single-lever.
• Installation location: bathtub.
• Installation: exposed wall-mounted.
• Finish: chrome.
• Finish code: C0.
• Cartridge: ceramic.
• SoftTurn technology: yes.
• Evershine technology: yes.
• Lever position: top.
• Spout: fixed.
• Diverter: automatic.
• Hand shower: Roca Natura.
• Hand shower functions: 1.
• Hose: included.
• Hose length: 1.70 meters.
• Hand shower holder: articulated.
• Eccentric connectors: included.
• Water inlet thread: 1/2 inch.
• Nominal distance between outlets: 150 millimeters.
• Adjustment range between outlets: from 134 to 166 millimeters.
• Approximate body width: 267 millimeters.
• Approximate maximum height: 168 millimeters.
• Approximate projection: 158 millimeters.
• Approximate rosette diameter: 65 millimeters.
• Waste: not included.

What the A5A014FC00 set includes

• Roca Victoria Plus exposed single-lever bathtub and shower tap.
• Automatic bath-shower diverter.
• One-function Natura hand shower.
• 1.70-meter shower hose.
• Articulated wall holder.
• Installation eccentric connectors.

Complete set to renew bathtub tapware

The Roca Victoria Plus A5A014FC00 combines a single-lever tap, hand shower, hose, and articulated holder in one reference, offering the main components needed to equip a bathtub that is also used as a shower area.

Its SoftTurn ceramic cartridge, automatic diverter, fixed spout, Evershine chrome finish, standard 1/2-inch connections, and included eccentric connectors make this set a practical solution for both new installations and replacing an existing wall-mounted tap.
