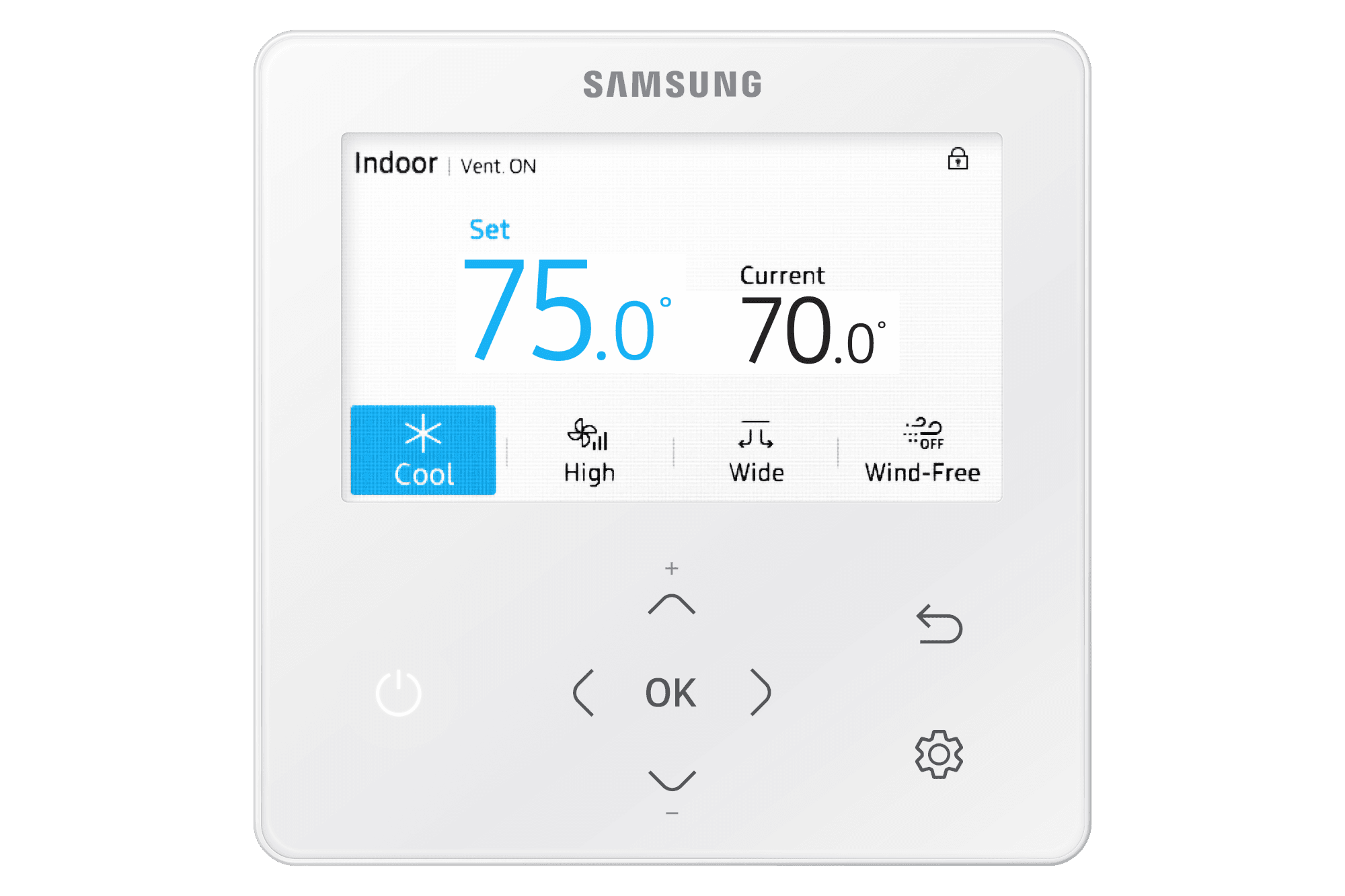

Premium Wired Remote Control Samsung MWR-WG01JN

The Samsung MWR-WG01JN premium wired remote controller is an advanced controller for compatible Samsung HVAC systems. It features a 4.3-inch color LCD display, built-in room temperature sensor, and an interface designed to centrally manage the main functions of the air conditioner and compatible ERV ventilation systems.

From a single control point, it allows you to manage power on/off, operating mode, set temperature, fan speed, and airflow direction, as well as offering advanced scheduling, energy control, usage restrictions, and error monitoring functions.

Advanced wired control for Samsung HVAC

The Samsung MWR-WG01JN is permanently wall-mounted and maintains a wired connection with the compatible HVAC system. This solution is especially suitable for homes, offices, shops, hotels, restaurants, and other installations where a permanent and easily accessible control point is required.

Samsung classifies this model as an advanced wired controller, placing it above simplified controllers in terms of programming, display, and configuration capabilities.

4.3-inch color LCD display

The controller incorporates a 4.3-inch color LCD display that clearly shows the system operating status, set temperature, room temperature, active mode, and the different configuration options available.

Navigation is carried out using physical direction, confirm, back, and options buttons. It also includes a dedicated on/off button with LED indicator, making it easy to quickly identify the unit status.

Control of the main air conditioning functions

The Samsung MWR-WG01JN allows you to manage the essential functions of compatible indoor units directly from the controller.

• System on/off.
• Operating mode selection.
• Desired temperature adjustment.
• Fan speed control.
• Airflow direction control.
• Room temperature display.
• Operating status check.
• Display and management of compatible alerts or errors.

Depending on the connected indoor unit, it may also access modes such as cooling, heating, auto, fan, dehumidification, quiet operation, Sleep, WindFree™ and air purification.

Built-in room temperature sensor

The controller includes a room temperature sensor. This provides a temperature reading directly from the remote controller location, offering greater configuration possibilities in compatible installations.

The availability and effective use of this sensor will depend on the configuration made during installation and the characteristics of the connected indoor unit.

Dual setpoint

Among the advanced functions of the MWR-WG01JN is the dual setpoint, which allows differentiated setpoints to be used within compatible configurations.

This function provides greater flexibility for managing the system operating limits, especially in professional installations where it is necessary to keep HVAC within specific ranges.

Weekly, annual, and vacation scheduling

The Samsung wired controller offers extensive time scheduling options. The manufacturer’s manual includes general, weekly, and annual scheduling, as well as specific settings for vacation periods.

Weekly scheduling allows you to define days, times, on or off, and, depending on the installation, parameters such as operating mode, set temperature, and fan speed.

Annual scheduling allows different periods throughout the year to be organized, while the vacation function makes it possible to exclude certain dates from regular schedules.

Timing and energy-saving functions

The MWR-WG01JN also includes options related to consumption control and usage schedules, including timers and energy-saving functions when the connected system supports these features.

Samsung includes functions such as Energy Saving Timer, set temperature limitation, and automatic stop after a certain period of inactivity, providing useful tools for controlling residential and professional installations.

Energy consumption and operating time display

In compatible systems, the controller allows access to energy consumption and operating time information. The manual includes display of instantaneous power and weekly, monthly, and annual consumption, as well as different energy configuration options.

Consumption or operating time targets can also be set, and alerts configured when certain values are reached, provided these functions are compatible with the connected equipment.

Control of up to 16 indoor units and ERV

Samsung specifies the possibility of group control of up to 16 indoor units plus compatible ERV equipment using a single wired controller.

This capability makes the MWR-WG01JN especially useful in professional or commercial installations where several units must be managed from one point.

The exact configuration and number of controllable units depend on the architecture of the installed Samsung system and the required accessories or interfaces.

ERV ventilation system control

In addition to air conditioning units, the Samsung MWR-WG01JN can control compatible ERV energy recovery ventilation equipment.

For these systems, it allows functions such as:

• On/off.
• Ventilation mode selection.
• Fan speed.
• Equipment status monitoring.
• Error display.

Combined scheduling for HVAC and ventilation is also possible in compatible installations.

Child lock and operating restrictions

The controller includes child lock and different permission levels to limit access to certain functions or buttons.

These features are especially useful in hotels, offices, shops, and public spaces, where it may be convenient to allow users to adjust some parameters while keeping certain system settings locked.

Real-time clock

The Samsung MWR-WG01JN incorporates a real-time clock with time and day display, a key element for properly managing automatic operating schedules.

The controller allows calendars and schedules to be configured to adapt HVAC operation to the actual occupancy periods of the space.

Filter cleaning reminder

The remote can display the filter cleaning alert for compatible units and allows the corresponding counter to be reset once maintenance has been carried out.

This function helps track periodic maintenance of the installation and reminds users when the system filters need to be checked.

Functions for installers and maintenance

In addition to user functions, the controller includes options aimed at commissioning and maintaining compatible Samsung systems.

• Service mode.
• Indoor unit operating data check.
• Indoor unit option settings.
• Unit address configuration.
• Error display and control.
• Maximum and minimum temperature restrictions.

These options make it easier to configure and supervise more complex HVAC installations.

Wireless remote receiver

The MWR-WG01JN incorporates a receiver for wireless remote control signals. This function must be enabled through the corresponding options, and final availability depends on the installation configuration and compatibility.

This allows certain installations to combine fixed wired control with a compatible wireless remote.

Interface available in Spanish

Samsung offers a multilingual interface for the MWR-WG01JN. The languages specified by the manufacturer include Spanish, English, French, Portuguese, Dutch, and German, making it suitable for installations in different European markets.

Compact wall-mounted design

The controller has approximate dimensions of 120 x 120 x 19 mm, offering a compact, slim format for wall installation.

The large display occupies much of the front panel, while the buttons located below it allow direct navigation through the different operating options.

Samsung MWR-WG01JN features

• Brand: Samsung.
• Reference: MWR-WG01JN.
• Type: advanced wired remote controller.
• Installation: wall-mounted.
• Display: color LCD.
• Display size: 4.3 inches.
• On/off control: yes.
• Mode selection: yes.
• Temperature adjustment: yes.
• Fan speed control: yes.
• Airflow direction control: yes, with compatible units.
• Room temperature display: yes.
• Built-in room temperature sensor: yes.
• Dual setpoint: yes.
• Real-time clock: yes.
• Weekly scheduling: yes.
• Annual scheduling: yes.
• Vacation scheduling: yes.
• Energy-saving functions: yes, depending on system compatibility.
• Energy consumption display: available in compatible systems.
• Filter cleaning alert: yes.
• Child lock: yes.
• Button and permission restrictions: yes.
• ERV control: yes, with compatible equipment.
• Group control: up to 16 indoor units + compatible ERV.
• Error display: yes.
• Service mode: yes.
• Wireless remote receiver: integrated, subject to configuration.
• Languages: includes Spanish, English, French, Portuguese, Dutch, and German.
• Approximate dimensions: 120 x 120 x 19 mm.
• Packaging dimensions: 236 x 162 x 98 mm.
• Packaged weight: 0.71 kg.

MWR-WG01JN compatibility

The Samsung MWR-WG01JN is designed as a control accessory for various compatible Samsung HVAC ranges, including commercial units, cassette systems, ducted systems, and other solutions that support wired control.

Compatibility must be checked for each specific indoor unit. In certain Samsung RAC units, the MIM-A00N interface is also required to connect the wired controller.

Likewise, some functions shown on the controller will only be available when the connected indoor unit, outdoor unit, or ventilation system is compatible with them.

Advanced control for Samsung installations

The Samsung MWR-WG01JN provides a complete solution for those who need a fixed wired controller with more capabilities than a conventional remote. Its color LCD display, integrated temperature sensor, advanced scheduling, energy management, and ability to control HVAC and ventilation allow numerous functions to be centralized from a single device.

Thanks to its scheduling options, user restrictions, control of up to 16 indoor units + ERV, and configuration and maintenance tools, it is especially suitable for advanced residential installations as well as offices, shops, hotels, and other professional Samsung HVAC projects.
