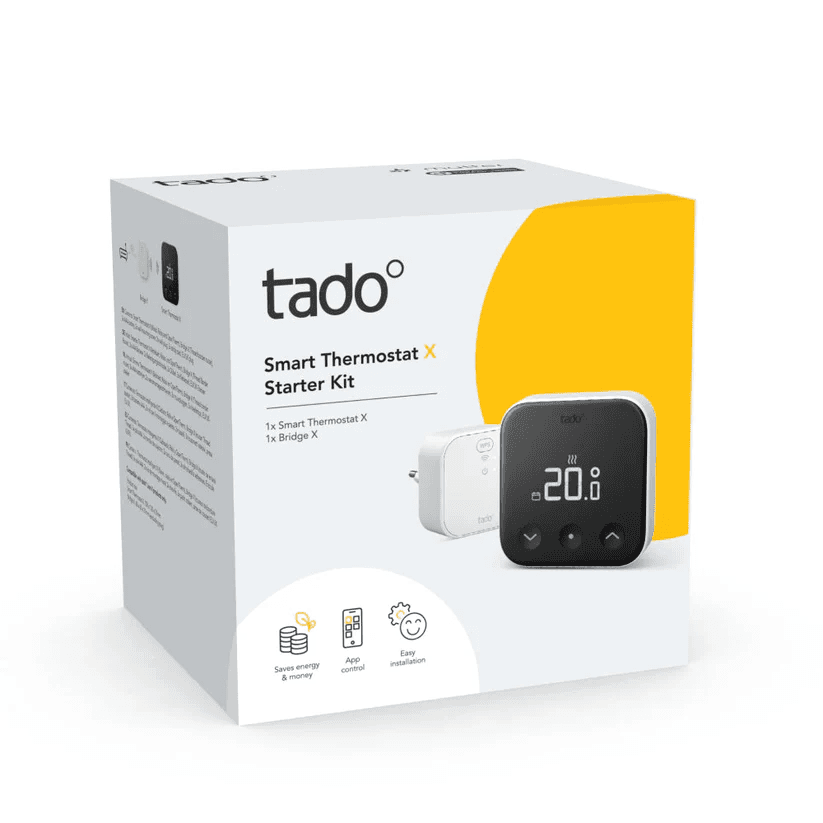

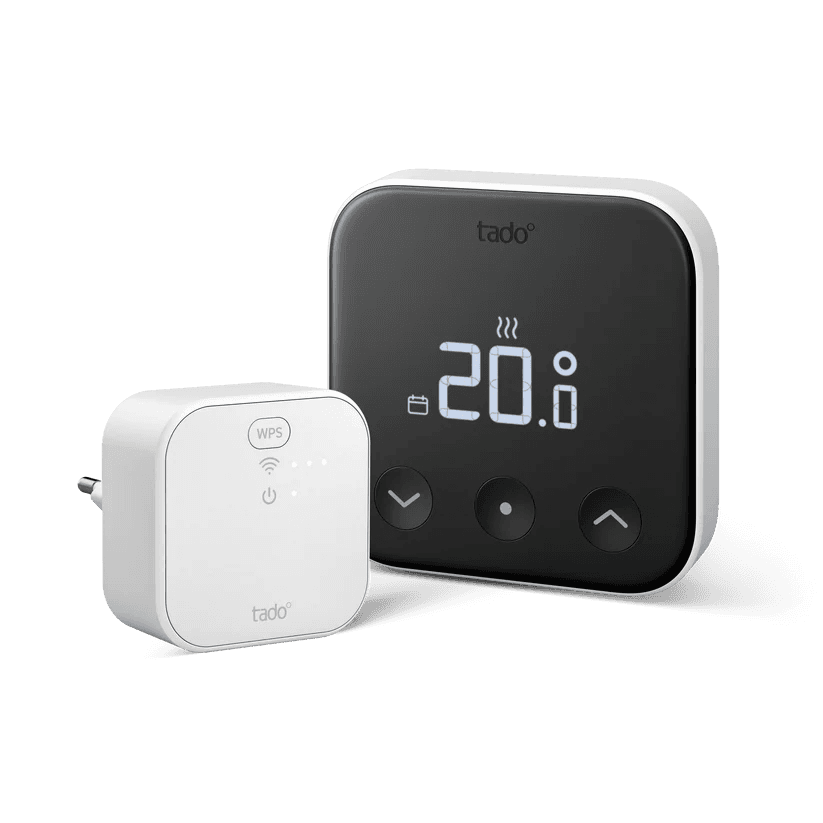

Tado X Wired Smart Thermostat - Starter Kit

The Tado X Wired Smart Thermostat is the new generation of Tado heating control, designed to maximize comfort and energy efficiency in any home. This starter kit includes the Bridge X, which acts as a Thread link router, allowing Tado X devices to connect directly to the network and be controlled from the mobile app or voice assistants.

Compatibility

Compatible with most boilers and heat pumps via relay or OpenTherm protocol, as well as with water underfloor heating systems. Easily replaces your current thermostats by following the guided instructions in the Tado app, with no technical knowledge required.

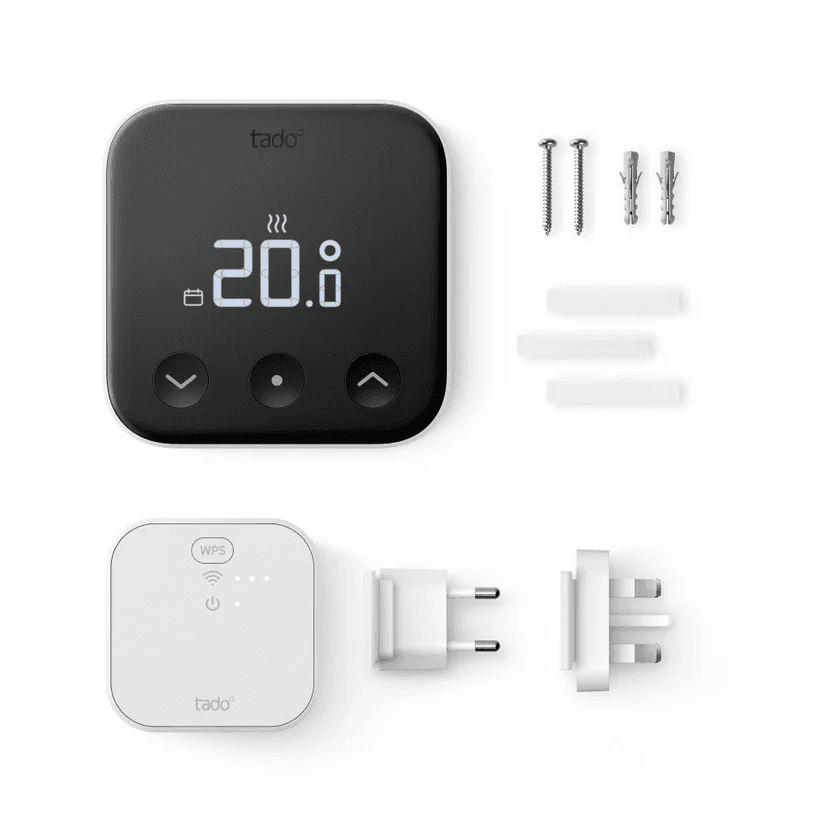

Box Contents

• 1× Smart Thermostat X (wired) for relay and OpenTherm
• 1× Bridge X (Thread link router)
• 3× AAA batteries (LR03 1200 mAh)
• 2× mounting screws and 2× wall plugs
• 3× adhesive pads
• 1× EU/UK plug

Dimensions and Power Supply

• Smart Thermostat X: 104 × 104 × 18 mm
• Bridge X: 60 × 60 × 31 mm
• Power supply: 4.5 VDC (3× AAA)
• Bridge X operating voltage: 230 V
• Bridge X power consumption: 0.7 W

Main Advantages

• Remote control via app or smart speaker
• Zone management and advanced scheduling
• Thread technology for greater stability and coverage
• Certified energy savings (up to 22%)

Installation

The Tado X system is designed for easy self-installation. The official app guides you step by step through the process, allowing you to replace the old thermostat and connect the Bridge in less than 5 minutes.

Dimensions and Weight

• Estimated thermostat weight: 150 g
• Bridge weight: 70 g
