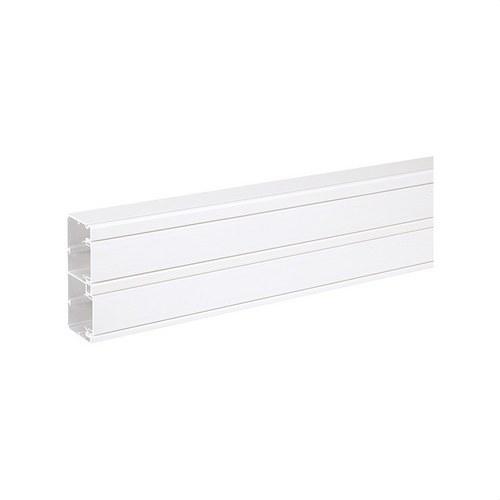

PVC Trunking 130x55mm K45 with 2 Compartments

The Simon K45 130x55 mm PVC Trunking is a modular system designed to optimize the organization and protection of electrical, voice, data, and multimedia cabling in all types of installations. With a length of 2 meters and two front compartments, it allows you to install all K45 range functions without the need for additional accessories, saving significant time and effort during installation.

Main features include:

• Section: 130 x 55 mm
• Length: 2 meters per unit, supplied in packs of 6 units (12 meters total)
• Material: High-quality PVC, white RAL 9003
• Protection rating: IP4X
• Flame-retardant, self-extinguishing, and non-flame propagating
• Compatible with all K45 range functions
• Option to branch to Minichannel or Cable Duct via pre-punched line
• IK rating: 7
• Heat resistance: +125 ºC according to IEC 60695-10-2
• Maximum working temperature: 120 ºC
• Installation temperature range: -25 to +120 ºC
• Installation: wall or ceiling mounted
• Fixing with slots every 25 cm for screw access
• Dimensions: 130 x 55 x 2000 mm

The trunking ensures proper insulation between different types of cabling and maintains the ideal bending radius throughout the distribution, preventing interference and possible cable damage. Thanks to its adaptable design, it can be complemented with K45 accessories and adapted to any installation architecture.

For maintenance, simply clean with a soft, dry cloth. Avoid using abrasive cleaners or those containing chlorine to preserve the finish and the flame-retardant properties of the PVC.

A practical, safe, and efficient solution that facilitates professional installation, offering versatility, protection, and durability in every meter of trunking.
