Transient and Permanent Surge Protector 1P+N 32A

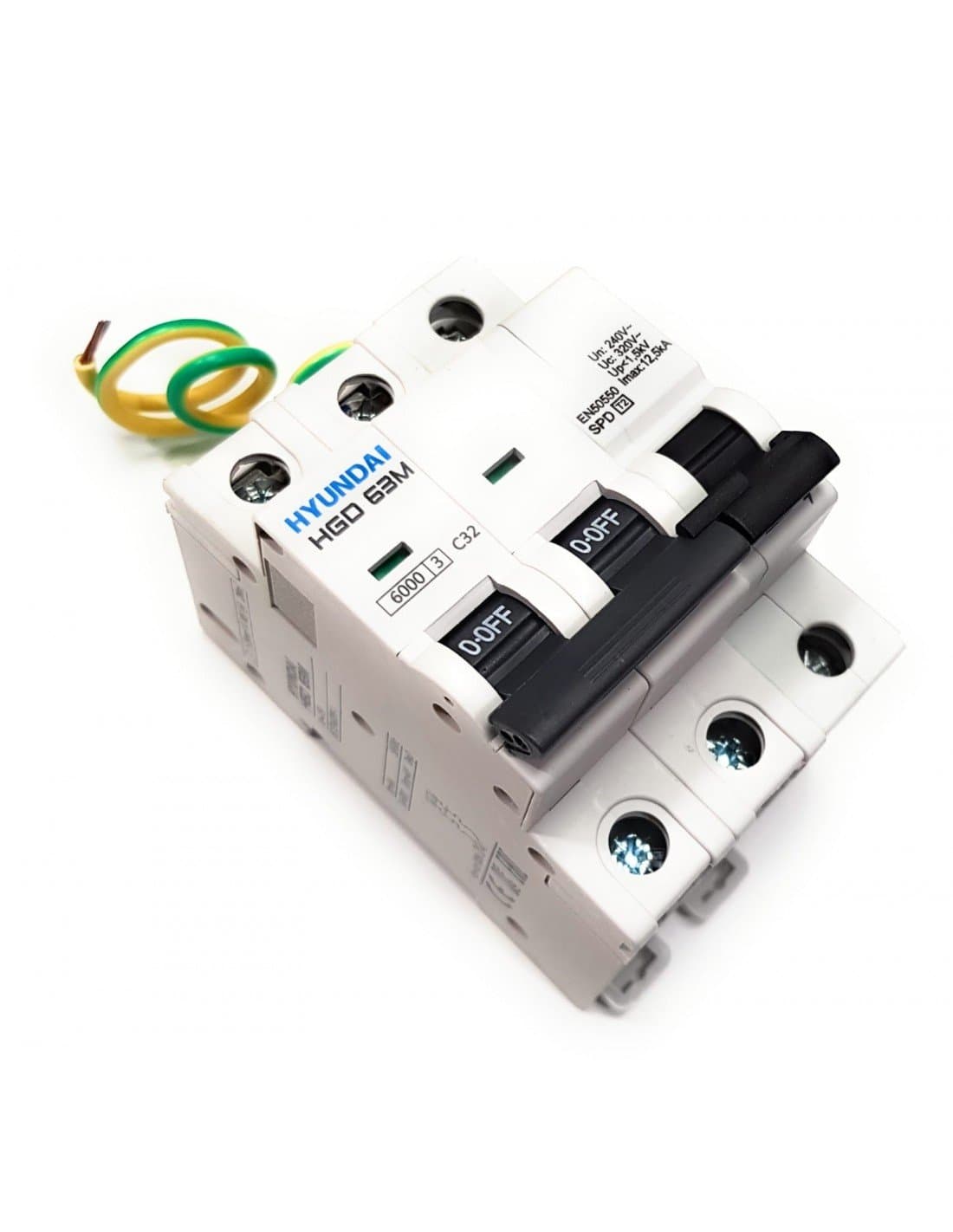

The Procoel ST-2P32 surge protector is a combined device for single-phase electrical installations that protects against permanent and transient overvoltages and incorporates a 32 A Miniature Circuit Breaker (MCB). Its 1P+N configuration allows the magnetothermal protection and voltage anomaly protection to be integrated into a single unit, simplifying installation and reducing the space required in the electrical panel.

The ST-2P32 incorporates a C-curve MCB with a breaking capacity of 6 kA and a Class II surge protection device for transient overvoltages. It offers a maximum discharge current Imax of 12.5 kA, nominal discharge current In of 6 kA, and a protection level Up ≤1.5 kV. The unit is installed on 35 mm DIN rail, occupies 3 modules, and is specifically designed for single-phase networks with phase, neutral, and earth.

Protection against permanent and transient overvoltages

The Procoel ST-2P32 combines two types of protection against electrical voltage disturbances:

• Permanent overvoltages: detects sustained increases in supply voltage and trips the integrated MCB.
• Transient overvoltages: limits very short voltage spikes caused, for example, by switching operations in the network or indirect effects of lightning strikes.

This combination helps protect downstream electrical and electronic equipment connected to the installation against different types of voltage disturbances.

Integrated 32 A MCB

The ST-2P32 reference incorporates a 32 A Miniature Circuit Breaker, so it is not necessary to associate the surge module with a separate MCB to perform the function intended by this assembly.

The integrated magnetothermal breaker has a C tripping curve and a breaking capacity of 6 kA. In addition to acting when the system detects a permanent overvoltage, it provides protection against overloads and short circuits in accordance with its rated characteristics.

1P+N configuration for single-phase installations

The ST-2P32 is configured as 1P+N and is intended for 230 V single-phase installations. The manufacturer indicates a rated operating voltage of 240 V AC and a frequency of 50-60 Hz.

To ensure correct operation of the system, the phase must be connected to the terminal marked L and the neutral to the N terminal.

Class II transient surge protector

The integrated transient protection is Class II and is designed for installation in distribution boards. It is prepared to divert current impulses with an 8/20 µs waveform.

• Class: II.
• Maximum discharge current Imax: 12.5 kA, 8/20 µs waveform.
• Nominal discharge current In: 6 kA.
• Protection level Up: ≤1.5 kV.

When a transient overvoltage occurs within the expected conditions, the protector limits the voltage peak to reduce the energy reaching the connected equipment.

Protection against permanent overvoltages

The device continuously monitors the network voltage. When it detects an increase above the expected limit, it acts on the integrated MCB and disconnects the installation.

The current Procoel technical sheet sets a trip voltage above 265 V AC with a tolerance of ±2%. The operating time depends on the magnitude of the detected overvoltage and is established according to EN 50550.

Manual reset after a permanent overvoltage

After a disconnection due to permanent overvoltage, the device becomes operational again by manual reset, provided that the mains voltage has returned to normal values.

This operation prevents automatic reconnection while an abnormal voltage persists in the installation.

Visual operating indicator

The protector incorporates a light window that allows the device status to be checked visually:

• Slow green flashing: correct operation.
• Fast green flashing: possible phase and neutral wiring error.
• Steady green: the module remains operational after acting against a transient overvoltage.
• Red: the transient protection has become unusable and the module must be replaced.

Requires neutral and earth

Procoel expressly specifies that the ST-2P32 must not be installed on lines without neutral or in installations that lack protective earth (PE).

Earthing is necessary for the correct operation of the transient surge protection system, as it allows the disturbance energy to be diverted according to the protector design.

Compact 3-module DIN format

The protector is installed on 35 mm DIN rail and occupies 3 modules. Its dimensions are approximately 54 x 90 x 71 mm, allowing the MCB and the protection systems against permanent and transient overvoltages to be integrated in a reduced space.

Terminals up to 25 mm²

The technical documentation establishes a maximum terminal connection cross-section of 25 mm². The effective conductor cross-section must be selected according to the circuit current, the installation system, and the applicable electrical regulations.

IP20 protection

The ST-2P32 has an IP20 protection rating and is intended for installation inside suitable electrical panels or enclosures.

The environmental range specified by the manufacturer is between -20 and +70 °C, with a maximum relative humidity of 80%.

Applications of the Procoel ST-2P32

• Single-phase residential electrical panels.
• Apartments and second homes.
• Retail premises.
• Offices.
• Homeowners' associations.
• Small workshops.
• Commercial installations.
• Panels with sensitive electronic equipment.
• Single-phase installations requiring a 32 A MCB.

Technical specifications of the Procoel ST-2P32

• Brand: Procoel / Hyundai Electric.
• Reference: ST-2P32.
• Family: ST-2Pxx.
• Type: combined permanent and transient overvoltage protector with MCB.
• Application: single-phase installations.
• Configuration: 1P+N.
• Rated current: 32 A.
• Integrated MCB: yes.
• MCB curve: C.
• Breaking capacity: 6 kA.
• Mains voltage: 230 V AC.
• Rated operating voltage: 240 V AC.
• Frequency: 50-60 Hz.
• Protection against permanent overvoltages: yes.
• Permanent trip voltage: >265 V AC ±2%.
• Operating time: according to EN 50550.
• Reset: manual.
• Protection against transient overvoltages: yes.
• Transient protection class: Class II.
• Maximum discharge current Imax: 12.5 kA, 8/20 µs waveform.
• Nominal discharge current In: 6 kA.
• Protection level Up: ≤1.5 kV.
• Visual status indicator: yes.
• Maximum terminal cross-section: 25 mm².
• Mounting: 35 mm DIN rail.
• Number of modules: 3.
• Dimensions: 54 x 90 x 71 mm.
• Protection rating: IP20.
• Ambient temperature: -20 to +70 °C.
• Maximum relative humidity: 80%.
• Neutral required: yes.
• PE earth required: yes.
• Standards indicated: UNE-EN 60898, EN 50550 and IEC/EN 61643-11.

Comprehensive protection for 32 A single-phase panels

The Procoel ST-2P32 combines a 32 A C-curve MCB and protection against permanent and transient overvoltages in a unit of only 3 DIN modules. This integration simplifies the electrical panel configuration and protects the installation against both prolonged voltage increases and short-duration transient spikes.

Its Class II protection, Imax of 12.5 kA, In of 6 kA, Up ≤1.5 kV, and breaking capacity of 6 kA make it a particularly suitable solution for residential and commercial single-phase installations requiring a 32 A rating.

Important: the phase must be connected to L and the neutral to N. The manufacturer expressly states that the unit must not be installed on lines without neutral or without PE earth. Installation must be carried out by a qualified professional.
