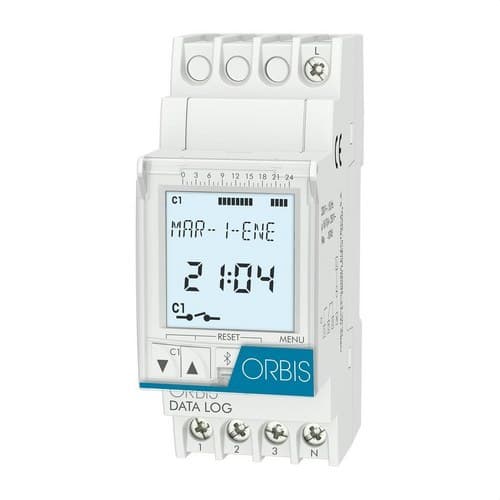

Digital Timer Switch DATA LOG 230V

The Orbis DATA LOG, reference OB174012, is a digital time switch for 230 V designed to automate the switching on and off of an electrical circuit using daily or weekly schedules. It features a 16(10) A changeover contact, capacity for up to 40 programs, a backlit LCD display and Bluetooth communication, offering an advanced solution for controlling lighting, irrigation, shop windows, illuminated signs, fountains and other electrical equipment.

Its 2-module modular format allows it to be installed directly on DIN rail inside the electrical panel. In addition to conventional on/off switching, it supports short-duration pulses, repetitive cycles, special holiday periods, automatic summer-winter time changeover and temporary or permanent manual override.

Daily and weekly programming with up to 40 programs

The DATA LOG allows up to 40 programs to be configured to adapt circuit operation to the actual schedules of each installation. A different schedule can be set depending on the day of the week, or several days can be grouped together when they need to use the same times.

This flexibility makes it possible to automate residential, commercial, communal or professional installations, avoiding unnecessary switch-ons and ensuring that equipment operates only during the planned time slots.

A 16(10) A changeover circuit

Reference OB174012 corresponds to the single-circuit DATA LOG version. It incorporates a changeover contact with breaking capacity of 16(10) A at 250 V AC, allowing direct control of different types of loads within the limits established by Orbis.

For applications that need to control two independent circuits, Orbis offers the DATA LOG 2 version, while reference OB174012 is specifically intended for control of a single circuit.

ON/OFF switching, pulses and cycles

In addition to conventional fixed-time programming, the Orbis DATA LOG allows different types of switching to be configured for more specific automation applications.

• Fixed time ON/OFF: circuit connection or disconnection at the programmed times.
• Pulses: switching operations with programmable duration between 1 and 59 seconds.
• Cycles: repetitive sequences from 1 to 59 seconds and/or from 1 minute to 23 hours and 59 minutes.
• Manual switching: allows the circuit status to be temporarily changed.
• Permanent switching: keeps the output connected or disconnected regardless of the time program.

Programming via Bluetooth

The current version of the DATA LOG OB174012 includes Bluetooth 5 LE communication as standard, allowing programming from a compatible smartphone as well as direct use of the device’s front controls.

This connectivity makes it easier to create and modify schedules when the programmer is installed inside the electrical panel and allows its functions to be managed using compatible Orbis software solutions.

Backlit LCD display

The DATA LOG incorporates a backlit graphical LCD display that clearly shows the time, programming and circuit status. The unit also displays a daily schedule that makes it easier to visualize the configured operating periods.

Backlighting and contrast adjustment simplify programming and maintenance tasks even when the electrical panel is installed in a poorly lit area.

Four special periods for holidays and public holidays

The programmer allows up to four special annual periods to be defined. These periods can be used to temporarily adapt operation during holidays, public holidays, company shutdowns or other dates when the installation’s usual schedule changes.

This means there is no need to delete the regular weekly program every time an exception occurs in the calendar.

Automatic summer-winter time changeover

The DATA LOG can automatically switch between summer and winter time depending on the selected country. This function can also be disabled when the installation requires a fixed time throughout the year.

Backup reserve with replaceable battery

The time switch incorporates a replaceable CR2032 3 V 220 mAh battery, designed to preserve the clock and programs when mains power is interrupted.

Current Orbis documentation specifies a backup reserve of up to 5 years with the battery installed and the unit disconnected from the mains, and an estimated battery life of up to 10 years when the time switch remains powered.

Even without an operational battery, the unit has a high-capacity capacitor that can keep the stored programming for approximately 48 hours without power.

Operating hours counter

The DATA LOG integrates a channel operating hours counter. This function makes it possible to know how long the circuit has remained active and can be especially useful for planning maintenance or monitoring the use of lighting fixtures and other electrical equipment.

Keypad lock and sealable cover

To help prevent accidental or unauthorized changes, the programmer includes keypad locking. It also features a sealable front cover that physically limits access to the controls.

These features are especially useful in residential communities, public buildings, shops, municipal installations and other electrical panels accessible to different people.

Load capacity

The DATA LOG contact offers a breaking capacity of 16(10) A at 250 V AC. The maximum recommended loads depend on the technology of the connected receivers.

• Incandescent lamps: up to 3000 W.
• Fluorescent lamps: up to 1200 VA.
• 12 V low-voltage halogen lamps: up to 2000 VA.
• 230 V halogen lamps: up to 3000 W.
• Energy-saving lamps: up to 600 VA.
• Downlights: up to 400 VA in conventional configuration.
• LED lighting: up to 90 VA in conventional configuration.

Orbis also documents higher capacities for certain electronic loads when zero-cross switching is used. The specific configuration must always be checked and the maximum power indicated by the manufacturer must be respected.

Compact 2-module DIN format

The Orbis DATA LOG is designed for installation on DIN rail and occupies only 2 modules in width. Its dimensions are approximately 35 x 88 x 65 mm, making it easy to integrate alongside the rest of the control and protection devices in the electrical panel.

Connection is made using screw terminals and accepts rigid or flexible conductors with cross-sections between 1 and 6 mm². The maximum tightening torque specified by the manufacturer is 0.8 Nm.

Technical specifications of the Orbis DATA LOG OB174012

• Brand: Orbis.
• Reference: OB174012.
• Model: DATA LOG.
• Type: modular digital time switch.
• Power supply: 230 V AC ±10%.
• Frequency: 50/60 Hz.
• Number of circuits: 1.
• Contact type: changeover.
• Breaking capacity: 16(10) A at 250 V AC.
• Maximum number of programs: 40.
• Programming: daily and weekly.
• Special periods: 4.
• Switching modes: ON/OFF, manual, permanent, pulses and cycles.
• Pulse duration: from 1 to 59 seconds.
• Cycles: from 1 to 59 seconds and/or from 1 minute to 23 hours and 59 minutes.
• Programming accuracy: to the second.
• Clock accuracy: ±1 s/24 h at 23 °C.
• Summer/winter time changeover: automatic by country or disableable.
• Hour counter: yes.
• Communication: Bluetooth 5 LE.
• Display: backlit LCD.
• Time format: 12/24 hours.
• Keypad lock: yes.
• Sealable front cover: yes.
• Battery: CR2032, 3 V, 220 mAh, replaceable.
• Backup with battery and without mains power: up to 5 years.
• Battery life with mains power: up to 10 years.
• Programming retention without battery or mains: approximately 48 hours.
• Own consumption at 230 V: approximately 1 W.
• Degree of protection: IP20.
• Protection class: Class II under correct mounting conditions.
• Rated impulse voltage: 4 kV.
• Operating temperature: -10 to 55 °C.
• Mounting: DIN rail.
• Width: 2 DIN modules.
• Approximate dimensions: 35 x 88 x 65 mm.
• Net weight: approximately 95 g.
• Connection: screw terminals.
• Conductor cross-section: 1-6 mm², rigid or flexible.
• Maximum tightening torque: 0.8 Nm.

Applications of the DATA LOG time switch

Thanks to its weekly programming, pulse and cycle functions and ability to set special periods, the DATA LOG can be used to automate numerous electrical circuits.

• Lighting in residential communities.
• Outdoor and decorative lighting.
• Illuminated signs and shop windows.
• Street or public lighting.
• Fountains and gardens.
• Irrigation systems.
• Office and retail lighting.
• Time-based automation of compatible electrical equipment.

Advanced time control in just 2 modules

The Orbis DATA LOG OB174012 combines 40 programs, daily and weekly programming, pulses, cycles and four special periods in a single compact programmer. The backlit display and Bluetooth connectivity simplify both initial setup and later schedule modifications.

Its backup reserve, hour counter, keypad lock and 16(10) A changeover contact complete a versatile solution for installations where precise and easily adjustable time control is required.

Important: before connecting any equipment, the current, power and load type must be checked to comply with the limits established by Orbis. Installation and wiring must be carried out in accordance with the manufacturer’s instructions and applicable electrical regulations.
