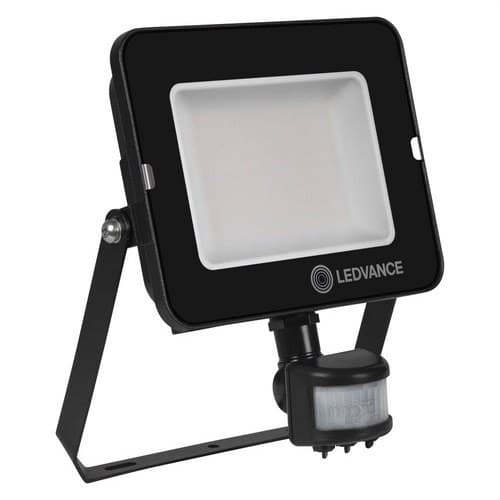

LED Projector FL COMP SEN 50W 830 100º BK 4500LM

The OSRAM/LEDVANCE Floodlight Compact Sensor LED floodlight, reference 4058075575301, is a 50 W outdoor luminaire with integrated motion and light sensor. It delivers a luminous flux of 4500 lm, warm white light at 3000 K and a symmetrical 100° x 100° distribution, making it especially suitable for facades, entrances, gardens, patios, parking areas, common areas and other outdoor spaces where automatic lighting is required.

Its PIR sensor can detect motion at an adjustable distance of 2 to 12 meters and is combined with an adjustable twilight sensor between 10 and 2000 lux. It also allows the switch-on time to be adjusted between 10 seconds and 12 minutes. The unit has IP65 protection, an aluminum body, tempered glass and an L70/B50 service life of up to 50,000 hours.

50 W LED floodlight with 4500 lm

The Floodlight Compact Sensor delivers a nominal luminous flux of 4500 lm with a power consumption of 50 W, achieving a luminous efficacy of 90 lm/W. Its high light output makes it possible to illuminate outdoor surfaces efficiently and replace conventional halogen floodlights in compatible applications.

The LED light source and driver are integrated into the luminaire itself, forming a compact unit ready for connection to a 220-240 V supply.

Warm white light at 3000 K

The 830 designation identifies a color temperature of 3000 K and a color rendering index Ra of 80 or higher. This warm white tone is especially suitable for homes, facades, gardens, terraces and other spaces where functional lighting with a comfortable visual appearance is desired.

LEDVANCE specifies a color consistency of less than 5 SDCM.

Integrated PIR motion sensor

The floodlight incorporates a motion detector using passive infrared PIR technology. The range can be adjusted approximately between 2 and 12 meters to adapt the detection area to the needs of each installation.

The detection angle is adjustable between 40° and 160°. In addition, the sensor assembly can be oriented by rotating up to 350° and tilting up to 180°, making it easy to direct detection toward entrances, paths or specific areas.

Adjustable twilight sensor

The Floodlight Compact Sensor also incorporates a photocell to measure ambient light levels. The activation threshold can be adjusted between 10 and 2000 lux.

This function allows the floodlight to respond to motion only when there is little ambient light, avoiding unnecessary switching on during the day.

Timing from 10 seconds to 12 minutes

The time the luminaire remains on after detecting motion can be adjusted between 10 seconds and 12 minutes.

Short timings are especially useful in entrances and passage areas, while longer periods can be used in patios, gardens, parking areas or spaces where users need lighting for longer.

Permanent on function

In addition to automatic sensor operation, LEDVANCE includes an override function that allows the floodlight to remain permanently on through a specific power switching sequence.

This option provides greater flexibility when continuous lighting is needed for maintenance tasks, outdoor work, gatherings or other occasional situations.

Symmetrical 100° x 100° optics

The floodlight uses a symmetrical light distribution via reflector, with a beam angle of 100° x 100°. The wide beam allows large surfaces to be covered and light to be distributed evenly.

LEDVANCE specifies a ULOR of 0% when the luminaire is installed at a 0° tilt, preventing direct upward light emission in that position.

IP65 protection for outdoor use

The luminaire has an IP65 protection rating, offering complete protection against dust ingress and resistance to water jets. The sensor assembly itself also has an IP65 rating.

It is designed for outdoor applications and can be installed on a wall, pole or horizontal surface following the manufacturer's instructions.

IK06 mechanical resistance

The floodlight body has IK06 impact resistance, while the sensor has an IK05 rating.

These features provide protection against common accidental impacts in outdoor installations, although the luminaire is not designed for areas exposed to high-intensity impacts.

Aluminum body and tempered glass

The housing is made of black-finished aluminum, while the front cover and emitting surface use tempered glass.

The frosted glass helps provide a uniform light distribution and reduce high-luminance points.

Compact dimensions

The floodlight measures 202 mm in length, 170 mm in width and 60 mm in height. Its net weight is approximately 630 g.

Its compact format makes it easy to integrate into facades, walls and other surfaces where high light output is needed without installing a bulky floodlight.

Service life of up to 50,000 hours

LEDVANCE declares an L70/B50 service life of 50,000 hours at an ambient temperature of 25 °C. For more demanding lumen maintenance criteria, it specifies 35,000 hours L80/B10 and 25,000 hours L90/B10.

The luminaire is also designed to withstand up to 100,000 on/off cycles, a particularly relevant feature in equipment controlled by a motion detector.

220-240 V power supply

The Floodlight Compact Sensor operates with a nominal voltage of 220-240 V AC and a frequency of 50/60 Hz. Its nominal current is 245 mA and it has a power factor greater than 0.90.

The declared inrush current is 5.2 A for approximately 1 µs and the specified total harmonic distortion is less than 20%.

Circuit sizing

As a reference for installations with multiple luminaires, LEDVANCE specifies the following maximums according to certain miniature circuit breakers:

• B16 MCB: up to 36 luminaires.
• C10 MCB: up to 26 luminaires.
• C16 MCB: up to 42 luminaires.

Final sizing must be carried out considering the actual characteristics of the circuit, conductor cross-section and length, installed protection devices and applicable electrical regulations.

Electrical protection class I

The floodlight belongs to Protection Class I. Therefore, the conductive metal parts of the housing must remain correctly connected to the protective earth conductor.

The electrical installation must be carried out by qualified personnel following the manufacturer's instructions.

1 meter H05RN-F cable

The luminaire comes factory-fitted with a 1-meter H05RN-F flexible cable, consisting of three 1.0 mm² conductors.

The connection terminal block is not included. LEDVANCE also specifies that the external flexible cable cannot be replaced; if it is damaged, the luminaire must be taken out of use.

Integrated, non-dimmable LED light source

The LED light source is part of the floodlight itself and is not intended to be replaced. The electronic driver is also integrated.

This reference is not dimmable with a conventional dimmer, as its control is oriented toward operation via the built-in sensor and electrical supply.

Low flicker and photobiological safety

LEDVANCE classifies this luminaire as low flicker. Its color rendering index Ra ≥80 provides suitable color representation for general outdoor lighting.

The specified photobiological safety group is RG1 according to EN 62778 and EN 62471.

Operating range from -30 to +45 °C

The floodlight is designed to operate in ambient temperatures between -30 and +45 °C, allowing outdoor use in a wide variety of climatic conditions.

For storage, the manufacturer specifies a temperature range between -40 and +70 °C.

Applications of the Floodlight Compact Sensor 50 W

• Residential and building facades.
• Entrances and access points.
• Gardens and patios.
• Balconies and terraces.
• Parking areas.
• Outdoor common areas.
• Public areas.
• Construction sites.
• Commercial and professional areas.
• Replacement for traditional halogen floodlights.

Technical features of the OSRAM/LEDVANCE 4058075575301

• Brand: OSRAM / LEDVANCE.
• Reference / GTIN: 4058075575301.
• Model: FL COMP SEN V 50W 830 SYM 100 BK.
• Range: FLOODLIGHT COMPACT SENSOR 50W.
• Type: outdoor LED floodlight with sensor.
• Rated power: 50 W.
• Luminous flux: 4500 lm.
• Luminous efficacy: 90 lm/W.
• Color temperature: 3000 K.
• Light color: warm white.
• Color rendering index: Ra ≥80.
• Color consistency: <5 SDCM.
• Light distribution: symmetrical.
• Beam angle: 100° x 100°.
• Sensor type: motion and light.
• Sensor technology: PIR + photocell.
• Detection range: 2-12 m.
• Detection angle: 40°-160°.
• Sensor orientation: rotation up to 350° and tilt up to 180°.
• Time delay: 10 s-12 min.
• Twilight threshold: 10-2000 lux.
• Permanent on function: yes, via specific switching sequence.
• Rated voltage: 220-240 V.
• Frequency: 50-60 Hz.
• Rated current: 245 mA.
• Inrush current: 5.2 A.
• Inrush current duration: 1 µs.
• Power factor: >0.90.
• Total harmonic distortion: <20%.
• Electrical protection class: Class I.
• Luminaire protection rating: IP65.
• Sensor protection rating: IP65.
• Luminaire impact resistance: IK06.
• Sensor impact resistance: IK05.
• Dimmable: no.
• Light source: integrated LED.
• Replaceable LED source: no.
• Driver: integrated.
• Low flicker: yes.
• Photobiological risk group: RG1.
• Color: black.
• Body material: aluminum.
• Cover material: tempered glass.
• Length: 202 mm.
• Width: 170 mm.
• Height: 60 mm.
• Net weight: 630 g.
• Cable length: 1 m.
• Cable: H05RN-F, 3 x 1.0 mm².
• Connection type: 3-pole cable.
• Mounting: surface.
• Mounting location: wall, pole or horizontal surface.
• Use: outdoor.
• Operating temperature: -30 to +45 °C.
• Storage temperature: -40 to +70 °C.
• L70/B50 service life: 50,000 h at 25 °C.
• L80/B10 service life: 35,000 h at 25 °C.
• L90/B10 service life: 25,000 h at 25 °C.
• Switching cycles: 100,000.
• LEDVANCE warranty: 3 years.

Automatic outdoor lighting with warm light

The OSRAM/LEDVANCE Floodlight Compact Sensor 4058075575301 combines 4500 lm of luminous flux with automatic motion and light detection. The 2 to 12 meter range, adjustable time delay and twilight setting allow its operation to be adapted to the specific characteristics of each outdoor space.

The 3000 K warm light, wide 100° beam, IP65 protection and service life of up to 50,000 hours make it a particularly practical solution for entrances, facades, gardens, patios and circulation areas that do not need to remain lit permanently.

Important: this reference does include a PIR motion sensor and twilight sensor. The luminaire belongs to Class I and must be correctly connected to the protective earth conductor. The external terminal block is not included.
