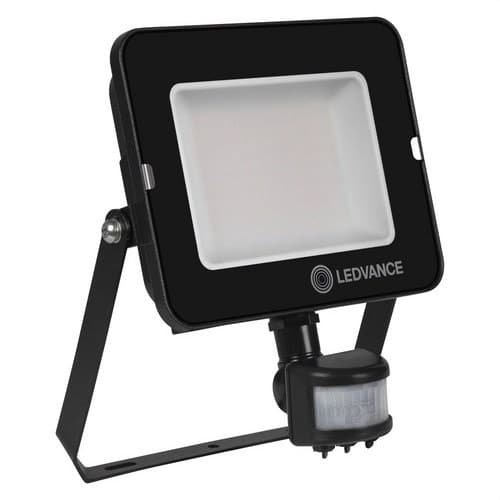

LED Projector FL COMP SEN 50W 840 100º BK 5000LM

The OSRAM/LEDVANCE Floodlight Compact Sensor LED floodlight, reference 4058075575325, is a 50 W outdoor luminaire with integrated motion and light sensor. It delivers a luminous flux of 5000 lm, a color temperature of 4000 K and a symmetrical 100° x 100° beam distribution, providing wide and uniform lighting for facades, gardens, entrances, common areas, public spaces and other outdoor areas.

Its PIR and twilight sensor allows automatic switching based on the presence of people and ambient light level. The detection range can be adjusted between 2 and 12 meters, the time delay between 10 seconds and 12 minutes, and the light threshold between 10 and 2000 lux. In addition, the unit offers IP65 protection, IK06 impact resistance and an L70/B50 service life of up to 50,000 hours.

50 W power and 5000 lm

The Floodlight Compact Sensor offers a rated power of 50 W and a luminous flux of 5000 lm, achieving an efficacy of 100 lm/W. This combination makes it possible to replace traditional halogen floodlights with a lower-consumption LED solution with a longer service life.

LEDVANCE indicates energy savings of up to 90% compared with conventional halogen floodlights in equivalent applications.

Neutral white light of 4000 K

Reference 4058075575325 corresponds to the 840 version, with a color temperature of 4000 K and a color rendering index Ra ≥80.

Neutral white light provides functional and balanced illumination for residential, commercial and professional outdoor spaces, ensuring good visibility without an excessively cool tone.

Symmetrical 100° x 100° optics

The floodlight uses a symmetrical light distribution via reflector with a beam angle of 100° x 100°. This optic allows large surfaces to be covered evenly from wall mounting, pole mounting or other compatible surfaces.

The frosted tempered glass diffuser helps distribute the light uniformly and reduce high-luminance points.

Integrated PIR motion sensor

The Floodlight Compact Sensor incorporates a motion detector using passive infrared PIR technology. The detection range can be adjusted between approximately 2 and 12 meters, allowing the monitored area to be adapted to the characteristics of each installation.

The sensor detection angle can be configured within an approximate range of 40° to 160°. In addition, the sensor itself can be rotated up to 350° and tilted up to 180°, making it easy to aim it toward the area that really needs to be controlled.

Twilight sensor from 10 to 2000 lux

The integrated sensor also measures ambient light levels. The activation threshold can be adjusted between 10 and 2000 lux, allowing the floodlight to be configured so that it only switches on when light is low or so that it responds to motion in almost any lighting condition.

This function helps avoid unnecessary switching on during the day and makes better use of available natural light.

Adjustable time delay from 10 seconds to 12 minutes

The time the floodlight remains on after detecting motion can be adjusted between approximately 10 seconds and 12 minutes.

Short times are suitable for entrances and passage areas, while longer delays can be used in gardens, patios, facades or work areas where lighting needs to remain on for longer.

Permanent on function

The manufacturer includes a permanent override function for the sensor via a specific switching sequence from the power supply. This function allows the luminaire to remain continuously on when needed.

IP65 protection for outdoor use

The floodlight has an IP65 protection rating, allowing it to be used outdoors exposed to dust and rain within the conditions specified by the manufacturer.

The sensor also has an IP65 rating, maintaining the necessary level of protection for outdoor installations.

IK06 mechanical resistance

The luminaire has IK06 impact resistance, while the sensor is rated IK05. These features provide additional protection against accidental impacts in outdoor installations and passage areas.

Aluminum housing and tempered glass

The floodlight body is made of black-finished aluminum, while the light-emitting surface uses tempered glass. This construction combines lightness, durability and thermal dissipation capability.

The luminaire has a compact design of 202 x 170 x 60 mm and an approximate weight of 630 g.

1-meter connection cable included

The unit comes factory-fitted with a 1-meter flexible H05RN-F cable, with three 1.0 mm² conductors. This makes it easy to connect to the electrical installation without needing to open the luminaire body.

The terminal block is not included and must be selected and installed according to the requirements of the installation.

Service life of up to 50,000 hours

LEDVANCE specifies an L70/B50 service life of 50,000 hours at an ambient temperature of 25 °C. It also states 35,000 hours L80/B10 and 25,000 hours L90/B10.

The luminaire is designed to withstand up to 100,000 on/off cycles, a particularly relevant feature in sensor-controlled applications where switching may be frequent.

Operating between -30 and +45 °C

The operating ambient temperature range is between -30 and +45 °C, allowing the floodlight to be used in demanding outdoor conditions.

For storage, the manufacturer specifies a range of -40 to +70 °C.

Protection class I

The floodlight belongs to Protection Class I, so accessible metal parts must remain connected to the protective earth conductor.

The rated supply is 220-240 V at 50/60 Hz, with a rated current of 245 mA and a power factor greater than 0.90.

Flicker-free lighting

LEDVANCE classifies the floodlight as flicker-free, promoting visually stable lighting. The color rendering index is Ra ≥80 and the photobiological safety group is RG1.

Flexible installation

The luminaire can be installed on a wall, pole or horizontal surface. The bracket allows a wide range of movement and has a mounting angle of 30°, making it easy to direct the light beam toward the desired area.

When installed at a 0° tilt, the manufacturer specifies an ULOR of 0%, preventing direct upward light emission.

Applications of the LED Floodlight Compact Sensor

• House and building facades.
• Entrances and access points.
• Patios and gardens.
• Balconies and terraces.
• Outdoor common areas.
• Public areas.
• Parking areas and access roads.
• Construction sites.
• Commercial and professional environments.
• Replacement for traditional halogen floodlights.

Technical specifications of the OSRAM/LEDVANCE 4058075575325

• Brand: OSRAM / LEDVANCE.
• Reference / GTIN: 4058075575325.
• Model: FL COMP SEN V 50W 840 SYM 100 BK.
• Range: FLOODLIGHT COMPACT SENSOR 50W.
• Type: outdoor LED floodlight with sensor.
• Rated power: 50 W.
• Luminous flux: 5000 lm.
• Luminous efficacy: 100 lm/W.
• Color temperature: 4000 K.
• Light color: neutral white.
• Color rendering index: Ra ≥80.
• Light distribution: symmetrical.
• Beam angle: 100° x 100°.
• Sensor: motion + light.
• Motion technology: PIR.
• Sensor range: 2-12 m.
• Detection angle: 40°-160°.
• Sensor orientation: rotation up to 350° and tilt up to 180°.
• Time delay: 10 s-12 min.
• Light threshold: 10-2000 lux.
• Permanent on function: yes, via switching sequence.
• Supply voltage: 220-240 V.
• Frequency: 50-60 Hz.
• Rated current: 245 mA.
• Inrush current: 5.2 A.
• Power factor: >0.90.
• Total harmonic distortion: <20%.
• Electrical protection class: Class I.
• Protection rating: IP65.
• Luminaire impact resistance: IK06.
• Sensor impact resistance: IK05.
• Dimmable: no.
• Light source: integrated non-replaceable LED.
• Driver: integrated.
• Color: black.
• Body material: aluminum.
• Diffuser: tempered glass.
• Dimensions: 202 x 170 x 60 mm.
• Weight: 630 g.
• Cable: H05RN-F, 3 x 1.0 mm².
• Cable length: 1 m.
• Mounting type: surface.
• Mounting positions: wall, pole or floor/horizontal surface.
• Operating temperature range: -30 to +45 °C.
• Storage temperature: -40 to +70 °C.
• L70/B50 service life: 50,000 h at 25 °C.
• L80/B10 service life: 35,000 h at 25 °C.
• L90/B10 service life: 25,000 h at 25 °C.
• Switching cycles: 100,000.
• Flicker-free: yes.
• Photobiological group: RG1.
• ULOR: 0% with 0° mounting.
• Manufacturer warranty: 3 years.

Automatic and efficient outdoor lighting

The OSRAM/LEDVANCE Floodlight Compact Sensor 4058075575325 combines 5000 lm of luminous flux with a fully adjustable PIR and twilight sensor. In this way, the floodlight can remain off when there is no motion and switch on automatically only when needed.

Its IP65 protection, aluminum housing, wide temperature range, service life of up to 50,000 hours and symmetrical 100° optics make it a particularly suitable solution for automatic outdoor lighting in residential, commercial and professional environments.

Important: the luminaire belongs to Class I and must be correctly earthed. The supplied external cable is not replaceable; if it is damaged, LEDVANCE indicates that the luminaire must be taken out of use.
