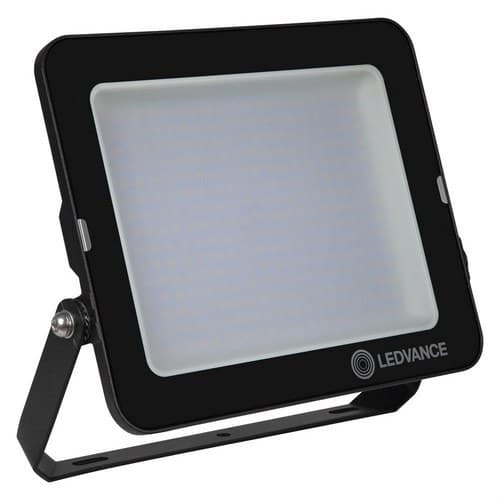

LED Projector FL COMP V 135W 830 100º BK 12150LM

The OSRAM/LEDVANCE Floodlight Compact LED projector, reference 4058075575103, is a 135 W outdoor luminaire delivering a luminous flux of 12,150 lm and a color temperature of 3000 K. Its symmetrical 100° x 100° optics provide wide, even illumination, while the IP65 and IK08 ratings make it suitable for facades, parking lots, gardens, access areas, public spaces, construction sites, and other professional outdoor applications.

With a luminous efficacy of 90 lm/W, a black aluminum housing, and a tempered glass front cover, this projector combines high light output with a compact, robust design. It integrates the LED source and driver, includes a 1-meter power cable and surge protection, and achieves an L70/B50 service life of up to 50,000 hours. This reference corresponds to the standard version and does not include a motion sensor or twilight sensor.

135 W power and 12,150 lm

The Floodlight Compact delivers a nominal luminous flux of 12,150 lm with a power consumption of 135 W, reaching an efficacy of 90 lm/W. Its high light output makes it suitable for large outdoor areas and positions it as a LED alternative to conventional high-power halogen floodlights.

LEDVANCE positions this version as a replacement for halogen floodlights of approximately 1000 W within the intended applications for the range.

Warm white light at 3000 K

The 830 designation corresponds to a color temperature of 3000 K and a color rendering index Ra ≥80. This warm white tone is especially suitable for facades, gardens, terraces, residential areas, and other spaces where powerful lighting with a warmer visual appearance is desired.

The color consistency specified by the manufacturer is below 5 SDCM.

Symmetrical 100° x 100° optics

The floodlight uses a reflector-based optical system with symmetrical light distribution and a beam angle of 100° x 100°. This wide beam helps distribute light evenly across facades, open areas, parking lots, and other large surfaces.

LEDVANCE specifies an ULOR of 0% when the luminaire is installed at a 0° tilt, preventing direct upward light emission in that position.

IP65 protection for outdoor use

The IP65 protection rating guarantees complete protection against dust ingress and resistance to water jets, making the Floodlight Compact suitable for outdoor applications within the installation conditions indicated by the manufacturer.

It can be installed on walls, poles, or horizontal surfaces using its adjustable mounting bracket.

IK08 impact resistance

The IK08 classification provides high mechanical resistance against accidental impacts. This feature is especially useful in parking lots, public areas, commercial environments, industrial sites, and other spaces where the luminaire may be exposed to impacts.

Aluminum housing and tempered glass

The body is made of aluminum with a black finish, while the front cover uses tempered glass. This combination provides mechanical strength and supports proper thermal management of the LED and electronic components.

The luminaire also incorporates a ventilation membrane designed to promote internal air exchange without compromising IP65 protection.

Compact and adjustable format

The 135 W Floodlight Compact measures 274 x 305 x 48 mm and has an approximate net weight of 2.21 kg. Its design delivers high light output while maintaining a relatively slim body.

The mounting bracket has a 30° angle and a wide rotation range to direct the luminaire toward the area to be illuminated.

Service life of up to 50,000 hours

LEDVANCE declares an L70/B50 service life of 50,000 hours at an ambient temperature of 25 °C. For more demanding lumen maintenance levels, it specifies 35,000 hours L80/B10 and 25,000 hours L90/B10.

The floodlight is also designed to withstand up to 100,000 switching cycles.

Surge protection

The unit incorporates surge protection of up to 4 kV between line or neutral and protective earth, and up to 2 kV between line and neutral.

This integrated protection provides greater electrical robustness against certain disturbances that may occur in outdoor installations.

220-240 V power supply

The luminaire operates at a nominal voltage of 220-240 V AC and a frequency of 50/60 Hz. The nominal current is 649 mA and the power factor is greater than 0.90.

The inrush current specified by LEDVANCE is 9 A for approximately 2.7 µs.

Circuit sizing

LEDVANCE indicates the following maximum number of luminaires for certain circuit breakers:

• B16 circuit breaker: up to 13 luminaires.
• C10 circuit breaker: up to 10 luminaires.
• C16 circuit breaker: up to 16 luminaires.

Final sizing must be checked according to the actual installation conditions, the conductors used, the circuit length, and the applicable electrical regulations.

Electrical protection class I

The floodlight belongs to Class I. Therefore, the conductive metal parts of the housing must remain properly connected to the protective earth conductor.

Installation must be carried out by qualified personnel following the instructions and electrical requirements indicated by the manufacturer.

1-meter H05RN-F cable

The Floodlight Compact comes factory-fitted with a 1-meter flexible H05RN-F cable made up of three 1.0 mm² conductors.

The external terminal block is not supplied with the luminaire. LEDVANCE also states that the external flexible cable is not replaceable, so if it is damaged the luminaire must be taken out of service.

Integrated LED source and driver

The LED light source is integrated into the floodlight and is not intended to be replaced. The electronic driver is also part of the luminaire.

This reference is not dimmable.

Low flicker and good color rendering

LEDVANCE classifies the floodlight as a low-flicker luminaire. Its color rendering index Ra ≥80 provides suitable color reproduction for general outdoor lighting applications.

The photobiological safety group indicated is RG1 in accordance with EN 62778 and EN 62471.

Operation between -30 and +45 °C

The luminaire can operate in ambient temperatures ranging from -30 to +45 °C, making it suitable for outdoor use in environments with significant temperature variations.

For storage, LEDVANCE specifies a temperature range of -40 to +70 °C.

Applications of the Floodlight Compact 135 W

• Facade lighting.
• Parking lots and access areas.
• Gardens and patios.
• Balconies and terraces.
• Public areas.
• Outdoor common areas.
• Open spaces and wide areas.
• Construction sites.
• Commercial and industrial installations.
• Replacement for conventional halogen floodlights.

Technical specifications of the OSRAM/LEDVANCE 4058075575103

• Brand: OSRAM / LEDVANCE.
• Reference / GTIN: 4058075575103.
• Model: FL COMP V 135W 830 SYM 100 BK.
• Range: FLOODLIGHT COMPACT 135W.
• Type: outdoor LED floodlight.
• Rated power: 135 W.
• Luminous flux: 12,150 lm.
• Luminous efficacy: 90 lm/W.
• Color temperature: 3000 K.
• Light color: warm white.
• Color rendering index: Ra ≥80.
• Color consistency: <5 SDCM.
• Light distribution: symmetrical.
• Beam angle: 100° x 100°.
• Motion sensor: no.
• Twilight sensor: no.
• Light source: integrated LED.
• Replaceable LED source: no.
• Driver: integrated.
• Dimmable: no.
• Low flicker: yes.
• Photobiological risk group: RG1.
• Nominal voltage: 220-240 V.
• Frequency: 50-60 Hz.
• Nominal current: 649 mA.
• Inrush current: 9 A.
• Inrush current duration: 2.7 µs.
• Power factor: >0.90.
• Total harmonic distortion: <20%.
• Surge protection L/N-PE: up to 4 kV.
• Surge protection L-N: up to 2 kV.
• Electrical protection class: Class I.
• Ingress protection: IP65.
• Impact resistance: IK08.
• Color: black.
• Housing material: aluminum.
• Cover material: tempered glass.
• Length: 274 mm.
• Width: 305 mm.
• Height: 48 mm.
• Net weight: 2.21 kg.
• Cable length: 1 m.
• Cable: H05RN-F, 3 x 1.0 mm².
• Connection: 3-pole cable.
• Mounting: surface-mounted.
• Mounting location: wall, pole, or horizontal surface.
• Mechanically adjustable: yes.
• Use: outdoor.
• Maximum exposed wind area: 0.061 m².
• Operating temperature: -30 to +45 °C.
• Storage temperature: -40 to +70 °C.
• Service life L70/B50: 50,000 h at 25 °C.
• Service life L80/B10: 35,000 h at 25 °C.
• Service life L90/B10: 25,000 h at 25 °C.
• Switching cycles: 100,000.
• ULOR: 0% at 0° tilt.
• LEDVANCE stated warranty: 3 years.

High-power outdoor floodlight with warm light

The OSRAM/LEDVANCE Floodlight Compact 4058075575103 combines 12,150 lm with symmetrical 100° optics to illuminate large outdoor surfaces. Its 3000 K output provides a warm white light suitable for projects where powerful lighting is needed without using cool color temperatures.

The aluminum housing, tempered glass front, IP65 and IK08 protection ratings, surge protection, and service life of up to 50,000 hours complete a robust solution for residential, commercial, industrial, and public-space installations.

Important: this reference corresponds to the standard FL COMP V version and does not include a motion sensor or twilight sensor. As a Class I luminaire, it must be correctly connected to the protective earth conductor.
