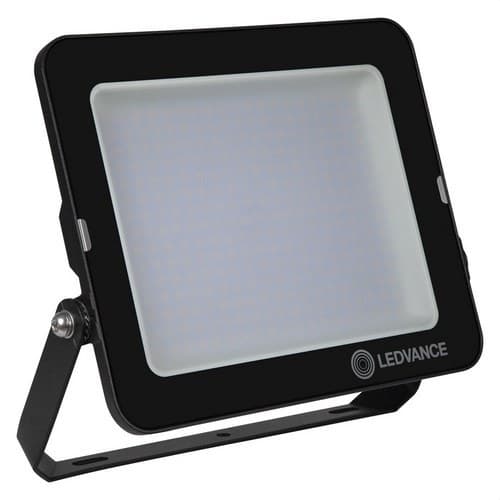

LED Projector FL COMP V 135W 840 100º BK 13500LM

The OSRAM/LEDVANCE Floodlight Compact LED floodlight, reference 4058075575127, is a high-power outdoor luminaire with 135 W and a luminous flux of 13,500 lm. It provides neutral white light at 4000 K and a symmetrical light distribution of 100° x 100°, delivering wide and uniform illumination for façades, parking areas, gardens, entrances, public spaces, construction sites, and other outdoor surfaces.

With a luminous efficacy of 100 lm/W, a black aluminum housing, and a tempered glass front cover, it combines high light output with a compact and robust design. It integrates the LED source and driver, includes a 1-meter flexible power cable, and features surge protection. Its IP65 protection and IK08 impact resistance make it especially suitable for demanding outdoor installations.

135 W power and 13,500 lm

The Floodlight Compact delivers a nominal luminous flux of 13,500 lm with a power consumption of 135 W, achieving an efficacy of 100 lm/W. These performance levels make it possible to illuminate large outdoor areas with a compact LED luminaire.

LEDVANCE positions this version as an alternative to halogen floodlights of approximately 1000 W, enabling a significant reduction in electricity consumption compared with conventional technologies in equivalent applications.

Neutral white light at 4000 K

The 840 designation identifies a color temperature of 4000 K and a color rendering index Ra of 80 or higher. This neutral white tone is especially suitable for parking areas, access routes, façades, work areas, and spaces where good visibility with balanced lighting is required.

The color consistency declared by LEDVANCE is below 5 SDCM.

Symmetrical 100° x 100° optics

The floodlight uses a symmetrical reflector-based light distribution with a beam angle of 100° x 100°. The wide beam makes it easy to illuminate façades, open areas, courtyards, circulation zones, and other large surfaces uniformly.

When the luminaire is installed at a 0° tilt, the manufacturer specifies an ULOR of 0%, preventing direct upward light emission.

IP65 protection for outdoor use

The IP65 protection rating provides complete protection against dust ingress and resistance to water jets, making the Floodlight Compact suitable for outdoor use within the mounting conditions specified by the manufacturer.

It can be installed on a wall, pole, or horizontal surface using its adjustable bracket.

IK08 mechanical resistance

The IK08 rating provides high resistance to accidental mechanical impacts. This feature is especially useful in parking areas, public spaces, commercial areas, industrial facilities, and other exposed outdoor locations.

Aluminum housing and tempered glass

The luminaire body is made of black-finished aluminum, while the front cover uses frosted tempered glass. This construction provides robustness and contributes to a uniform light distribution.

The floodlight also incorporates a ventilation membrane designed to optimize internal air exchange without compromising the IP65 protection rating.

Compact and adjustable design

The 135 W Floodlight Compact measures 274 x 305 x 48 mm and has an approximate net weight of 2.21 kg.

Its mounting bracket includes a 30° angle and a wide rotation range, allowing the floodlight to be mechanically aimed at the surface to be illuminated.

Service life of up to 50,000 hours

LEDVANCE declares an L70/B50 service life of 50,000 hours at an ambient temperature of 25 °C. For more demanding lumen maintenance criteria, it specifies 35,000 hours L80/B10 and 25,000 hours L90/B10.

The luminaire is also designed to withstand up to 100,000 on/off cycles.

Surge protection

The Floodlight Compact incorporates surge protection of up to 4 kV between line or neutral and protective earth, and up to 2 kV between line and neutral.

This integrated protection provides greater robustness against certain electrical disturbances in the power supply network.

220-240 V power supply

The luminaire operates with a nominal voltage of 220-240 V AC and a frequency of 50/60 Hz. Its nominal current is 649 mA and the power factor is greater than 0.90.

The inrush current specified by LEDVANCE is 9 A for approximately 2.7 µs, with total harmonic distortion below 20%.

Circuit sizing

For installations with multiple luminaires, LEDVANCE sets the following maximum quantities for certain miniature circuit breakers:

• B16 MCB: up to 13 luminaires.
• C10 MCB: up to 10 luminaires.
• C16 MCB: up to 16 luminaires.

Final sizing must be carried out taking into account the actual installation conditions, conductor cross-section and length, installed protection devices, and applicable electrical regulations.

Electrical protection class I

The floodlight belongs to Protection Class I. Therefore, the conductive metal parts of the housing must remain properly connected to the protective earth conductor.

Installation must be carried out by qualified personnel following the manufacturer’s instructions.

1-meter flexible cable

The luminaire comes factory-fitted with a 1-meter H05RN-F flexible cable, with three conductors of 1.0 mm².

The external terminal block is not included. LEDVANCE also specifies that the external flexible cable cannot be replaced; if it is damaged, the luminaire must no longer be used.

Integrated LED source and driver

The LED light source is integrated into the floodlight itself and is not designed to be replaced. The electronic driver is also part of the luminaire.

This version is not dimmable.

Low flicker and Ra ≥80

LEDVANCE classifies the Floodlight Compact as a low-flicker luminaire. The color rendering index Ra ≥80 provides suitable color representation for general outdoor lighting applications.

The photobiological safety group indicated is RG1 according to EN 62778 and EN 62471.

Operation between -30 and +45 °C

The floodlight is designed to operate in ambient temperatures ranging from -30 to +45 °C, allowing use outdoors in locations subject to significant temperature variations.

For storage, LEDVANCE specifies a range from -40 to +70 °C.

Applications of the Floodlight Compact 135 W

• Façade lighting.
• Parking areas and access routes.
• Gardens and patios.
• Balconies and terraces.
• Outdoor common areas.
• Public areas.
• Open spaces and plazas.
• Construction zones.
• Commercial and industrial installations.
• Replacement for high-power halogen floodlights.

Technical features of OSRAM/LEDVANCE 4058075575127

• Brand: OSRAM / LEDVANCE.
• Reference / GTIN: 4058075575127.
• Model: FL COMP V 135W 840 SYM 100 BK.
• Range: FLOODLIGHT COMPACT 135W.
• Type: outdoor LED floodlight.
• Rated power: 135 W.
• Luminous flux: 13,500 lm.
• Luminous efficacy: 100 lm/W.
• Color temperature: 4000 K.
• Light color: neutral white.
• Color rendering index: Ra ≥80.
• Color consistency: <5 SDCM.
• Light distribution: symmetrical.
• Beam angle: 100° x 100°.
• Motion sensor: no.
• Twilight sensor: no.
• Light source: integrated LED.
• Replaceable LED source: no.
• Driver: integrated.
• Dimmable: no.
• Low flicker: yes.
• Photobiological risk group: RG1.
• Rated voltage: 220-240 V.
• Frequency: 50-60 Hz.
• Rated current: 649 mA.
• Inrush current: 9 A.
• Inrush current duration: 2.7 µs.
• Power factor: >0.90.
• Total harmonic distortion: <20%.
• Surge protection L/N-PE: up to 4 kV.
• Surge protection L-N: up to 2 kV.
• Electrical protection class: Class I.
• Ingress protection: IP65.
• Impact resistance: IK08.
• Color: black.
• Body material: aluminum.
• Cover material: tempered glass.
• Length: 274 mm.
• Width: 305 mm.
• Height: 48 mm.
• Net weight: 2.21 kg.
• Cable length: 1 m.
• Cable type: H05RN-F, 3 x 1.0 mm².
• Connection: 3-pole cable.
• Mounting: surface-mounted.
• Mounting location: wall, pole, or horizontal surface.
• Adjustable: yes.
• Maximum wind-exposed surface area: 0.061 m².
• Use: outdoor.
• Operating temperature: -30 to +45 °C.
• Storage temperature: -40 to +70 °C.
• L70/B50 lifetime: 50,000 h at 25 °C.
• L80/B10 lifetime: 35,000 h at 25 °C.
• L90/B10 lifetime: 25,000 h at 25 °C.
• Switching cycles: 100,000.
• ULOR: 0% with 0° mounting.
• LEDVANCE warranty: 3 years.

High-power outdoor floodlight with neutral light

The OSRAM/LEDVANCE Floodlight Compact 4058075575127 combines 13,500 lm with a symmetrical 100° x 100° optic, offering extensive illumination for large outdoor surfaces. The 4000 K color temperature provides a neutral white light especially suitable for areas where visibility and a balanced tone are priorities.

IP65 protection, IK08 resistance, an aluminum housing, surge protection, and a service life of up to 50,000 hours complete a robust solution for large residential, commercial, industrial, and public installations.

Important: this reference corresponds to the standard FL COMP V version and does not include a motion sensor or twilight sensor. As a Class I luminaire, it must be correctly connected to the protective earth conductor.
