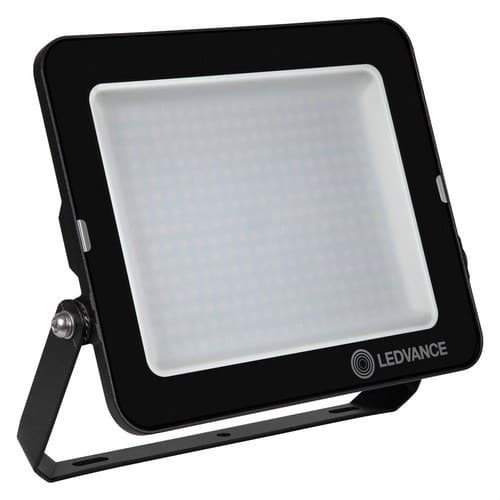

LED Projector FL COMP V 180W 840 100º BK 18000LM

The OSRAM/LEDVANCE Floodlight Compact LED projector, reference 4058075575189, is a high-power outdoor luminaire with 180 W and a luminous flux of 18,000 lm. It provides neutral white light at 4000 K and a symmetrical 100° x 100° light distribution, delivering wide-area illumination for facades, parking lots, gardens, access roads, public areas, construction sites, and other large outdoor spaces.

Its luminous efficacy of 100 lm/W makes it possible to obtain a high amount of light with LED technology. The projector features a black aluminum housing, tempered glass cover, IP65 protection against dust and water, and IK08 mechanical resistance. It incorporates an integrated LED light source and driver, a 1-meter power cable, and surge protection, with an L70/B50 service life of up to 50,000 hours.

180 W power and 18,000 lm

The Floodlight Compact 180W provides a nominal luminous flux of 18,000 lm with a power rating of 180 W, reaching an efficacy of 100 lm/W. These performance levels make it suitable for installations that need to illuminate large surfaces with high intensity.

LEDVANCE presents this range as an LED alternative for replacing floodlights with halogen lamps. In its professional catalog, this 180 W version is positioned as a replacement for halogen floodlights of up to 1500 W in the applications intended by the manufacturer.

Neutral white light at 4000 K

The 840 designation identifies a color temperature of 4000 K and a color rendering index Ra ≥80. This neutral white tone provides functional, balanced lighting, especially suitable for access areas, parking lots, facades, work zones, and other spaces where good visibility is required.

The color consistency specified by LEDVANCE is below 5 SDCM.

Symmetrical 100° x 100° optics

The luminaire incorporates a reflector-based symmetrical light distribution with a beam angle of 100° x 100°. This optic creates a wide beam to spread light across large surfaces.

With a mounting tilt of 0°, the manufacturer specifies an ULOR of 0%, preventing direct upward light emission in that position.

IP65 protection for outdoor installations

The IP65 protection rating provides complete protection against dust ingress and resistance to water jets, making the Floodlight Compact suitable for outdoor applications within the installation conditions indicated by LEDVANCE.

It can be installed on a wall, pole, or horizontal surface using its adjustable bracket.

IK08 mechanical resistance

The IK08 rating provides high resistance to accidental mechanical impacts. This makes it suitable for use in parking areas, public spaces, commercial areas, industrial facilities, and other locations where the luminaire may be more exposed.

Aluminum body and tempered glass

The projector housing is made of aluminum with a black finish, while the front cover and light-emitting surface use tempered glass.

The design also includes a ventilation membrane intended to optimize internal air exchange without compromising the luminaire’s IP rating.

Compact design for 180 W

The projector measures 300 mm in length, 340 mm in width, and 55 mm in height, with an approximate net weight of 2.91 kg.

The mounting bracket includes a 30° angle and a wide rotation range, making it easy to direct the luminaire toward the surface to be illuminated.

Service life of up to 50,000 hours

LEDVANCE declares an L70/B50 service life of 50,000 hours at an ambient temperature of 25 °C. For higher luminous flux maintenance levels, it specifies 35,000 hours L80/B10 and 25,000 hours L90/B10.

The luminaire is also designed to withstand up to 100,000 switching cycles.

Surge protection

The Floodlight Compact incorporates surge protection of up to 4 kV between line or neutral and protective earth, and up to 2 kV between line and neutral.

This integrated protection improves the unit’s resistance to certain electrical disturbances that may occur in the power supply network.

220-240 V power supply

The luminaire operates with a nominal voltage of 220-240 V AC and a frequency of 50/60 Hz. Its nominal current is 867 mA and it has a power factor greater than 0.90.

The inrush current specified by LEDVANCE is 9.3 A for approximately 3.6 µs.

Circuit sizing with multiple floodlights

To facilitate the design of installations with multiple luminaires, LEDVANCE specifies the following maximums for certain circuit breakers:

• B16 circuit breaker: up to 10 luminaires.
• C10 circuit breaker: up to 7 luminaires.
• C16 circuit breaker: up to 12 luminaires.

Final sizing must be carried out taking into account the actual characteristics of the circuit, the conductors used, the installed protections, and the applicable electrical regulations.

Class I electrical protection

The projector belongs to Protection Class I. For this reason, the conductive metal parts of the housing must remain correctly connected to the protective earth conductor.

The electrical installation must be carried out by qualified personnel following the manufacturer’s instructions.

1-meter H05RN-F cable included

The luminaire is factory-fitted with a 1-meter flexible H05RN-F cable, consisting of three 1.0 mm² conductors.

The external terminal block is not included with the projector. LEDVANCE also specifies that the external flexible cable is not replaceable; if it becomes damaged, the luminaire must be taken out of use.

Integrated LED light source and driver

The LED module is integrated into the luminaire and is not designed to be replaced. The electronic driver is also built into the projector itself.

This version is not dimmable.

Low flicker and Ra ≥80

LEDVANCE classifies the Floodlight Compact as a low-flicker luminaire. Its color rendering index Ra ≥80 provides suitable color reproduction for general outdoor lighting applications.

The photobiological safety group indicated is RG1 in accordance with EN 62778 and EN 62471.

Operation between -30 and +45 °C

The projector can operate in ambient temperatures ranging from -30 to +45 °C, allowing use outdoors under significant temperature variations.

For storage, LEDVANCE specifies a range from -40 to +70 °C.

Applications of the Floodlight Compact 180 W

• Facade lighting.
• Parking lots and access areas.
• Gardens and outdoor areas.
• Courtyards and open spaces.
• Public areas.
• Outdoor common areas.
• Commercial and industrial areas.
• Construction and work zones.
• Outdoor building lighting.
• Replacement for high-power halogen floodlights.

Technical features of OSRAM/LEDVANCE 4058075575189

• Brand: OSRAM / LEDVANCE.
• Reference / GTIN: 4058075575189.
• Model: FL COMP V 180W 840 SYM 100 BK.
• Range: FLOODLIGHT COMPACT 180W.
• Type: outdoor LED floodlight.
• Rated power: 180 W.
• Luminous flux: 18,000 lm.
• Luminous efficacy: 100 lm/W.
• Color temperature: 4000 K.
• Light color: neutral white.
• Color rendering index: Ra ≥80.
• Color consistency: <5 SDCM.
• Light distribution: symmetrical.
• Beam angle: 100° x 100°.
• Motion sensor: no.
• Twilight sensor: no.
• Light source: integrated LED.
• Replaceable LED source: no.
• Driver: integrated.
• Dimmable: no.
• Low flicker: yes.
• Photobiological risk group: RG1.
• Nominal voltage: 220-240 V.
• Frequency: 50-60 Hz.
• Nominal current: 867 mA.
• Inrush current: 9.3 A.
• Inrush current duration: 3.6 µs.
• Power factor: >0.90.
• Total harmonic distortion: <20%.
• Surge protection L/N-PE: up to 4 kV.
• Surge protection L-N: up to 2 kV.
• Electrical protection class: Class I.
• Protection rating: IP65.
• Impact resistance: IK08.
• Color: black.
• Body material: aluminum.
• Cover material: tempered glass.
• Length: 300 mm.
• Width: 340 mm.
• Height: 55 mm.
• Net weight: 2.91 kg.
• Cable length: 1 m.
• Cable type: H05RN-F, 3 x 1.0 mm².
• Connection: 3-pole cable.
• Mounting: surface-mounted.
• Mounting location: wall, pole, or horizontal surface.
• Mechanically adjustable: yes.
• Use: outdoor.
• Maximum exposed wind area: 0.077 m².
• Operating temperature: -30 to +45 °C.
• Storage temperature: -40 to +70 °C.
• L70/B50 service life: 50,000 h at 25 °C.
• L80/B10 service life: 35,000 h at 25 °C.
• L90/B10 service life: 25,000 h at 25 °C.
• Switching cycles: 100,000.
• ULOR: 0% with 0° mounting.
• Light source energy efficiency class: F.
• Warranty indicated by LEDVANCE: 3 years.

High power with neutral light for large outdoor areas

The OSRAM/LEDVANCE Floodlight Compact 4058075575189 combines 18,000 lm with a symmetrical 100° x 100° optic, delivering broad and uniform illumination. Its 4000 K output provides a neutral white light especially suitable for work areas, access points, facades, parking lots, and other spaces where visibility and a balanced tone are priorities.

Its aluminum housing, tempered glass, IP65 and IK08 protection, surge protection, and service life of up to 50,000 hours complete a robust solution for large residential, commercial, industrial, and public outdoor installations.

Important: this reference corresponds to the standard FL COMP V version and does not include a motion sensor or twilight sensor. As a Class I luminaire, it must be correctly connected to the protective earth conductor.
