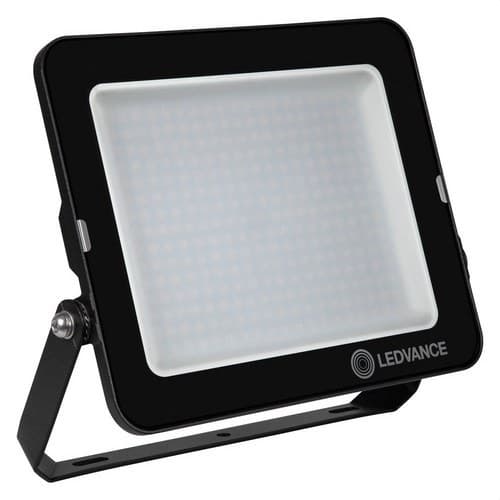

LED Projector FL COMP V 180W 865 100º BK 18000LM

The OSRAM/LEDVANCE Floodlight Compact LED projector, reference 4058075575202, is a high-power luminaire for professional outdoor lighting. It delivers 180 W of power and a luminous flux of 18,000 lm, with a color temperature of 6500 K and a symmetrical 100° x 100° beam distribution, making it suitable for facades, gardens, parking lots, public areas, work zones, and other outdoor spaces that require wide, intense illumination.

Its black aluminum housing, tempered glass front, and IP65 and IK08 protection ratings provide a robust construction for outdoor use. The LED light source and driver are integrated, and the manufacturer declares an L70/B50 service life of up to 50,000 hours at 25 °C, as well as up to 100,000 on/off cycles.

180 W power and 18,000 lm

The Floodlight Compact delivers a nominal luminous flux of 18,000 lm with a consumption of 180 W, achieving a luminous efficacy of 100 lm/W. It is designed as an LED alternative for applications where high-power halogen floodlights were traditionally used.

The high light output makes it possible to cover large areas with a single light point and makes it a particularly suitable solution for residential, commercial, industrial, and public outdoor lighting.

6500 K cool white light

The 865 code identifies a color temperature of 6500 K and a color rendering index Ra of 80 or higher. This tone corresponds to a daylight-type cool white light, intended for applications where a high sense of brightness and good visibility are desired.

The chromaticity standard deviation indicated by LEDVANCE is below 5 SDCM.

100° x 100° symmetrical optics

The projector incorporates a reflector with symmetrical light distribution and a 100° x 100° beam angle. This optic provides extensive, uniform illumination, especially suitable for lighting facades, entrances, open areas, gardens, and open spaces.

When installed at a 0° tilt, LEDVANCE specifies an ULOR of 0%, preventing direct light emission upward.

IP65 protection for outdoor use

The luminaire has an IP65 protection rating, offering high protection against dust ingress and water jets. It is specifically designed for outdoor installations within the temperature and mounting limits established by the manufacturer.

It can be installed on walls, poles, or horizontal surfaces using its adjustable bracket.

IK08 mechanical resistance

The Floodlight Compact 180 W has IK08 impact resistance, providing greater protection against accidental impacts that may occur in outdoor areas, parking lots, public spaces, or professional installations.

Aluminum housing and tempered glass

The body is made of aluminum with a black finish, and the light-emitting surface uses tempered glass. This construction combines mechanical strength with proper thermal dissipation for the electronics and integrated LED modules.

The compact design makes it possible to concentrate 180 W of power in dimensions of only 300 x 340 x 55 mm.

Service life of up to 50,000 hours

LEDVANCE declares an L70/B50 service life of 50,000 hours at an ambient temperature of 25 °C. For more demanding lumen maintenance criteria, it specifies 35,000 hours L80/B10 and 25,000 hours L90/B10.

The luminaire withstands up to 100,000 on/off cycles, allowing use in installations subject to frequent switching.

Low flicker

The manufacturer classifies this luminaire as Low Flicker, helping to provide visually stable lighting. The photobiological safety group indicated is RG1 in accordance with EN 62778 and EN 62471.

Operation between -30 and +45 °C

The projector is designed to operate in ambient temperatures ranging from -30 to +45 °C. For storage, LEDVANCE specifies a range of -40 to +70 °C.

This wide range makes it suitable for outdoor installations exposed to significant temperature variations throughout the year.

220-240 V power supply

The Floodlight Compact operates on 220-240 V AC at 50/60 Hz. It has a nominal current of 867 mA and a power factor greater than 0.90.

The declared inrush current is 9.3 A for 3.6 µs. LEDVANCE specifies a maximum of 10 luminaires on a B16 MCB, 7 on C10, and 12 on C16, within the conditions defined by the manufacturer.

Electrical protection class I

The luminaire belongs to Class I. Therefore, the metal parts of the housing must remain properly connected to the protective earth conductor throughout the service life of the installation.

Installation must be carried out by qualified personnel following LEDVANCE electrical and mounting instructions.

1-meter power cable

The projector includes a 3-pole connection cable with a length of 1000 mm. The manufacturer indicates that the external flexible cable is not replaceable; if damaged, the luminaire must be taken out of service.

The external connection block is not included and must be selected according to the characteristics and protection rating required in the installation.

Integrated LED source and driver

The LED module is part of the luminaire and is not designed to be replaced by the user. The electronic driver is also integrated into the projector itself.

This reference is not dimmable with a conventional dimmer.

Applications of the Floodlight Compact 180 W projector

• Building facades.
• Parking lots and access areas.
• Gardens and outdoor areas.
• Public areas.
• Courtyards and open spaces.
• Construction zones.
• Commercial and industrial areas.
• Outdoor lighting for residential communities.
• Replacement for high-power halogen floodlights.

Technical features of the OSRAM/LEDVANCE 4058075575202

• Brand: OSRAM / LEDVANCE.
• Reference / GTIN: 4058075575202.
• Model: FL COMP V 180W 865 SYM 100 BK.
• Range: FLOODLIGHT COMPACT 180W.
• Type: outdoor LED floodlight.
• Motion sensor: no.
• Rated power: 180 W.
• Luminous flux: 18,000 lm.
• Luminous efficacy: 100 lm/W.
• Color temperature: 6500 K.
• Light color: cool white / daylight.
• Color rendering index: Ra ≥80.
• Color consistency: <5 SDCM.
• Light distribution: symmetrical.
• Beam angle: 100° x 100°.
• Light source: integrated LED.
• Replaceable light source: no.
• Driver: integrated.
• Dimmable: no.
• Low flicker: yes.
• Photobiological risk group: RG1.
• Rated voltage: 220-240 V.
• Frequency: 50-60 Hz.
• Rated current: 867 mA.
• Inrush current: 9.3 A.
• Inrush current duration: 3.6 µs.
• Power factor: >0.90.
• Total harmonic distortion: <20%.
• Protection class: Class I.
• Ingress protection: IP65.
• Impact resistance: IK08.
• Housing material: aluminum.
• Front material: tempered glass.
• Color: black.
• Length: 300 mm.
• Width: 340 mm.
• Height: 55 mm.
• Net weight: 2.91 kg.
• Cable length: 1 m.
• Connection: 3-pole cable.
• Mounting: surface.
• Mounting locations: wall, pole, or horizontal surface.
• Adjustable: yes.
• Use: outdoor.
• Operating temperature: -30 to +45 °C.
• Storage temperature: -40 to +70 °C.
• L70/B50 service life: 50,000 h at 25 °C.
• L80/B10 service life: 35,000 h at 25 °C.
• L90/B10 service life: 25,000 h at 25 °C.
• Switching cycles: 100,000.
• Maximum wind load area: 0.077 m².
• ULOR: 0% at 0° tilt.
• Energy efficiency class of the light source: F.
• Warranty indicated by LEDVANCE: 3 years.

High-power floodlight for large outdoor areas

With 18,000 lm and a symmetrical 100° optic, the OSRAM/LEDVANCE Floodlight Compact 180 W is designed for installations that need a high amount of light distributed over large surfaces. Its aluminum construction, IP65 and IK08 protection, and operating range down to -30 °C make it suitable for numerous outdoor lighting projects.

Its 100 lm/W efficacy, service life of up to 50,000 hours, and ability to withstand 100,000 switching cycles complete a robust solution for large residential, commercial, industrial, and public applications.

Important: this reference does not include a motion sensor or twilight sensor. It corresponds to the standard FL COMP V version. The luminaire is Class I and must be correctly grounded during installation.
