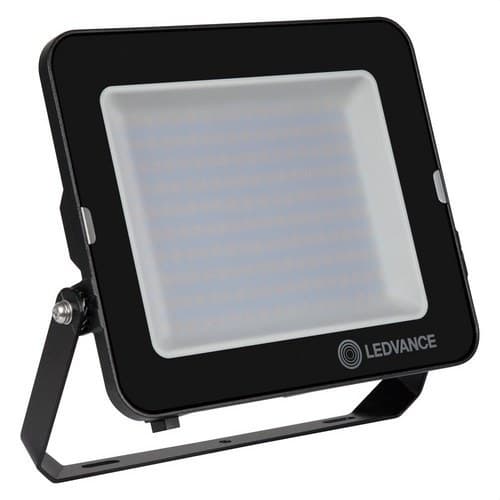

LED Projector FL COMP V 90W 830 100º BK 8100LM

The OSRAM/LEDVANCE Floodlight Compact LED projector, reference 4058075574984, is a 90 W outdoor luminaire that delivers a luminous flux of 8100 lm with warm white light at 3000 K. Its symmetrical 100° x 100° optics provide uniform illumination over large surfaces, while the IP65 protection rating and IK08 mechanical resistance make it especially suitable for facades, gardens, entrances, parking areas, public spaces, and other outdoor applications.

The luminaire features a compact, robust design with a black aluminum housing and tempered glass cover. It integrates the LED light source and driver, includes a 1-meter power cable, and offers an L70/B50 service life of up to 50,000 hours at 25 °C. This reference corresponds to the standard version without motion sensor or twilight sensor.

90 W power and 8100 lm

The Floodlight Compact delivers 8100 lm with a rated power of 90 W, achieving a luminous efficacy of 90 lm/W. Its high light output makes it suitable for illuminating medium and large outdoor areas with a single luminaire or as part of multi-projector installations.

Warm white light at 3000 K

The 830 code identifies a color temperature of 3000 K and a color rendering index of Ra ≥80. This warm white tone is suitable for applications where a high lighting capacity is desired together with a more comfortable visual atmosphere than that provided by cool color temperatures.

The color consistency specified by LEDVANCE is below 5 SDCM.

Symmetrical 100° x 100° optics

The projector uses a reflector with symmetrical light distribution and a beam angle of 100° x 100°. This optic creates a wide beam, especially suitable for illuminating facades, gardens, patios, entrances, parking areas, and open surfaces.

When the luminaire is installed at a 0° tilt, LEDVANCE specifies an ULOR of 0%, preventing direct upward light emission.

IP65 protection for outdoor installations

The Floodlight Compact has an IP65 protection rating, offering complete protection against dust and resistance to water jets. It is specifically designed for outdoor use within the mounting and temperature conditions established by the manufacturer.

It can be installed on a wall, pole, or horizontal surface using its adjustable bracket.

IK08 mechanical resistance

The IK08 rating provides high resistance to accidental mechanical impacts. This feature is especially valuable in parking areas, public spaces, commercial facilities, and other locations where the projector may be more exposed to knocks.

Aluminum housing and tempered glass

The luminaire body is made of black-finished aluminum. The cover and light-emitting surface are made of tempered glass, providing a durable construction suitable for outdoor use.

LEDVANCE also incorporates a ventilation membrane that promotes internal air exchange without compromising the luminaire’s IP rating.

Compact and adjustable format

Despite its 90 W power, the projector has compact dimensions of 236 x 255 x 40 mm and an approximate weight of 1.52 kg.

Its mounting bracket includes a 30° angle and allows a wide range of adjustment to direct the lighting toward the desired surface.

Service life of up to 50,000 hours

LEDVANCE declares an L70/B50 service life of 50,000 hours at an ambient temperature of 25 °C. For higher luminous flux maintenance levels, the declared service life is 35,000 hours L80/B10 and 25,000 hours L90/B10.

The luminaire is designed to withstand up to 100,000 switching cycles.

Surge protection

The Floodlight Compact incorporates surge protection of up to 4 kV between line or neutral and protective earth, and up to 2 kV between line and neutral.

This integrated protection provides greater electrical robustness against certain disturbances that may occur in the power supply network.

220-240 V power supply

The luminaire operates with a rated voltage of 220-240 V AC and a frequency of 50/60 Hz. Its rated current is 434 mA and it has a power factor greater than 0.90.

The inrush current indicated by LEDVANCE is 7.9 A for approximately 1.9 µs.

Circuit sizing

To facilitate the sizing of installations with multiple luminaires, LEDVANCE specifies the following indicative maximums per miniature circuit breaker:

• B16 MCB: up to 20 luminaires.
• C10 MCB: up to 15 luminaires.
• C16 MCB: up to 23 luminaires.

Final sizing must be checked according to the actual characteristics of the circuit, conductors, protections, and applicable regulations.

Class I with earth connection

The projector belongs to electrical protection Class I. The conductive metal parts of the housing must remain permanently connected to the protective earth conductor.

LEDVANCE indicates that installation must be carried out by qualified personnel.

1-meter power cable

The luminaire comes factory-fitted with a 1-meter H05RN-F flexible cable, with three 1.0 mm² conductors. The external terminal block is not included.

The external flexible cable is not replaceable. If it is damaged, the manufacturer indicates that the luminaire must be taken out of service.

Integrated LED source and driver

The LED module is part of the luminaire and is not designed to be replaced. The electronic driver is also integrated into the projector itself.

This version is not dimmable.

Operating range from -30 to +45 °C

The permitted ambient operating temperature range is between -30 and +45 °C, allowing the luminaire to be used in a wide variety of climatic conditions.

For storage, LEDVANCE specifies a range from -40 to +70 °C.

Low-flicker lighting

LEDVANCE classifies the Floodlight Compact as a low-flicker luminaire. The photobiological safety group indicated is RG1 according to EN 62778 and EN 62471.

Floodlight Compact 90 W applications

• Facade lighting.
• Gardens and patios.
• Building entrances.
• Parking areas.
• Balconies and terraces.
• Outdoor common areas.
• Public spaces.
• Construction sites.
• Commercial and professional installations.
• Replacement for conventional halogen floodlights.

Technical features of OSRAM/LEDVANCE 4058075574984

• Brand: OSRAM / LEDVANCE.
• Reference / GTIN: 4058075574984.
• Model: FL COMP V 90W 830 SYM 100 BK.
• Range: FLOODLIGHT COMPACT 90W.
• Type: outdoor LED floodlight.
• Motion sensor: no.
• Twilight sensor: no.
• Rated power: 90 W.
• Luminous flux: 8100 lm.
• Luminous efficacy: 90 lm/W.
• Color temperature: 3000 K.
• Light color: warm white.
• Color rendering index: Ra ≥80.
• Color consistency: <5 SDCM.
• Light distribution: symmetrical.
• Beam angle: 100° x 100°.
• Light source: integrated LED.
• Replaceable LED source: no.
• Driver: integrated.
• Dimmable: no.
• Low flicker: yes.
• Photobiological risk group: RG1.
• Rated voltage: 220-240 V.
• Frequency: 50-60 Hz.
• Rated current: 434 mA.
• Inrush current: 7.9 A.
• Inrush current duration: 1.9 µs.
• Power factor: >0.90.
• Total harmonic distortion: <20%.
• Surge protection L/N-PE: up to 4 kV.
• Surge protection L-N: up to 2 kV.
• Protection class: Class I.
• Ingress protection: IP65.
• Impact resistance: IK08.
• Color: black.
• Housing material: aluminum.
• Cover material: tempered glass.
• Length: 236 mm.
• Width: 255 mm.
• Height: 40 mm.
• Net weight: 1.52 kg.
• Cable length: 1 m.
• Cable: H05RN-F, 3 x 1.0 mm².
• Connection: 3-pole cable.
• Mounting: surface.
• Mounting location: wall, pole, or horizontal surface.
• Mechanically adjustable: yes.
• Use: outdoor.
• Maximum exposed wind area: 0.043 m².
• Operating temperature: -30 to +45 °C.
• Storage temperature: -40 to +70 °C.
• L70/B50 service life: 50,000 h at 25 °C.
• L80/B10 service life: 35,000 h at 25 °C.
• L90/B10 service life: 25,000 h at 25 °C.
• Switching cycles: 100,000.
• ULOR: 0% with 0° mounting.
• LEDVANCE warranty: 3 years.

Compact outdoor floodlight with warm light

The OSRAM/LEDVANCE Floodlight Compact 4058075574984 combines 90 W power and 8100 lm with 100° symmetrical optics to provide wide outdoor illumination. Its 3000 K color temperature delivers a warm tone especially suitable for facades, gardens, and spaces where functional lighting with greater visual comfort is desired.

IP65 protection, IK08 resistance, aluminum housing, surge protection, and a service life of up to 50,000 hours complete a robust solution for residential, commercial, and professional installations.

Important: this reference corresponds to the standard FL COMP V version and does not include a motion sensor or twilight sensor. The luminaire belongs to Class I and must be correctly connected to the protective earth conductor.
