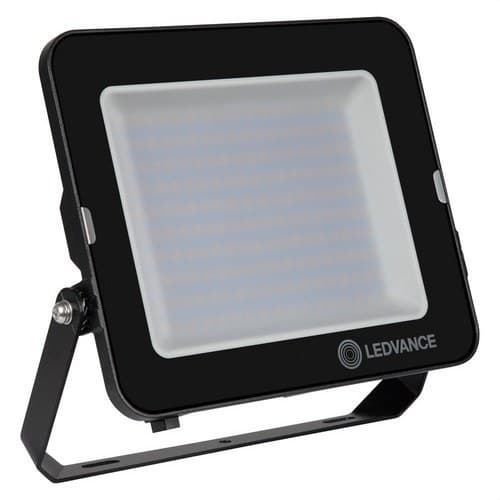

LED Projector FL COMP V 90W 840 100º BK 9000LM

The OSRAM/LEDVANCE Floodlight Compact LED projector, reference 4058075575004, is a 90 W outdoor luminaire that delivers a luminous flux of 9000 lm with neutral white light at 4000 K. Its symmetrical 100° x 100° light distribution allows large surfaces to be illuminated evenly, while the IP65 and IK08 ratings provide durability for façades, gardens, parking areas, access points, public spaces, construction sites, and other outdoor applications.

With a luminous efficacy of 100 lm/W, a black aluminum housing and a tempered glass front cover, this projector combines high light output with a compact design. It integrates the LED light source and driver, includes a 1-meter power cable and surge protection, and achieves an L70/B50 service life of up to 50,000 hours at 25 °C. This reference corresponds to the standard version and does not include a motion sensor or twilight sensor.

90 W power and 9000 lm

The Floodlight Compact delivers a nominal luminous flux of 9000 lm with a power consumption of 90 W, reaching an efficacy of 100 lm/W. These performance levels make it suitable for covering medium and large outdoor areas with a compact, high-performance LED luminaire.

The range is designed as an alternative to traditional halogen floodlights, reducing energy consumption and the maintenance requirements associated with periodic lamp replacement.

Neutral white light at 4000 K

The 840 designation identifies a color temperature of 4000 K and a color rendering index Ra of 80 or higher. This tone provides a neutral white light especially suitable for areas where good visibility is required without resorting to an excessively warm or cold light.

The color consistency declared by LEDVANCE is below 5 SDCM.

Symmetrical 100° x 100° optics

The projector uses a reflector with symmetrical light distribution and a beam angle of 100° x 100°. The wide beam makes it easy to illuminate façades, courtyards, gardens, access points, parking areas, and other open surfaces.

When installed at a 0° tilt, LEDVANCE specifies an ULOR of 0%, preventing direct upward light emission in that position.

IP65 protection for outdoor use

The IP65 protection rating provides complete protection against dust ingress and resistance to water jets. This allows the Floodlight Compact to be used in outdoor applications within the mounting and temperature conditions specified by the manufacturer.

The luminaire can be installed on a wall, pole, or horizontal surface using its adjustable bracket.

IK08 mechanical resistance

The IK08 rating provides high resistance to accidental mechanical impacts, a particularly useful feature for parking areas, public spaces, access points, commercial facilities, and other exposed outdoor locations.

Aluminum housing and tempered glass

The luminaire body is made of black-finished aluminum and the front cover uses tempered glass. This construction provides robustness and supports proper thermal management of the integrated LED and electronic components.

LEDVANCE also incorporates a ventilation membrane designed to promote internal air exchange without compromising the IP rating.

Compact format of 236 x 255 x 40 mm

The projector measures 236 mm in length, 255 mm in width, and only 40 mm in height, with a net weight of 1.52 kg.

Its mounting bracket has a 30° angle and allows the luminaire to be mechanically adjusted to direct the beam toward the surface to be illuminated.

Service life of up to 50,000 hours

LEDVANCE declares an L70/B50 service life of 50,000 hours at an ambient temperature of 25 °C. For more demanding lumen maintenance levels, it specifies 35,000 hours L80/B10 and 25,000 hours L90/B10.

The luminaire is also designed to withstand up to 100,000 switching cycles.

Surge protection

The Floodlight Compact incorporates surge protection of up to 4 kV between line or neutral and protective earth, and up to 2 kV between line and neutral.

This integrated protection provides greater robustness against certain electrical disturbances in the power supply network.

220-240 V power supply

The luminaire operates with a nominal voltage of 220-240 V AC and a frequency of 50/60 Hz. Its nominal current is 434 mA and it has a power factor greater than 0.90.

The inrush current specified by LEDVANCE is 7.9 A for approximately 1.9 µs, with total harmonic distortion below 20%.

Circuit sizing

For installations with multiple luminaires, LEDVANCE indicates the following maximum quantities for certain miniature circuit breakers:

• B16 circuit breaker: up to 20 luminaires.
• C10 circuit breaker: up to 15 luminaires.
• C16 circuit breaker: up to 23 luminaires.

Final sizing must be carried out taking into account the actual characteristics of the installation, conductor cross-section and length, the protection devices used, and applicable electrical regulations.

Electrical protection class I

The Floodlight Compact belongs to Protection Class I. For this reason, the conductive metal parts of the housing must remain correctly connected to the protective earth conductor.

LEDVANCE indicates that installation must be carried out by qualified personnel.

1-meter H05RN-F cable

The projector comes factory-fitted with a 1-meter H05RN-F flexible cable made up of three 1.0 mm² conductors.

The external terminal block is not included. The manufacturer also states that the external flexible cable of the luminaire is not replaceable; if it is damaged, the unit must be taken out of use.

Integrated LED source and driver

The LED light source is integrated into the projector and is not designed to be replaced. The electronic driver is also part of the luminaire.

This reference is not dimmable.

Low flicker and Ra ≥80

LEDVANCE classifies the Floodlight Compact as a low-flicker luminaire. Its color rendering index Ra ≥80 provides suitable color reproduction for general outdoor lighting applications.

The photobiological safety group indicated is RG1 according to EN 62778 and EN 62471.

Operation between -30 and +45 °C

The projector is designed to operate in ambient temperatures ranging from -30 to +45 °C, making it suitable for outdoor use in locations with significant temperature variations.

For storage, LEDVANCE specifies a range from -40 to +70 °C.

Floodlight Compact 90 W applications

• Façade lighting.
• Parking areas and access points.
• Gardens and patios.
• Balconies and terraces.
• Outdoor common areas.
• Public spaces.
• Construction sites.
• Commercial and professional installations.
• Outdoor areas of buildings.
• Replacement for conventional halogen floodlights.

Technical features of the OSRAM/LEDVANCE 4058075575004

• Brand: OSRAM / LEDVANCE.
• Reference / GTIN: 4058075575004.
• Model: FL COMP V 90W 840 SYM 100 BK.
• Range: FLOODLIGHT COMPACT 90W.
• Type: outdoor LED floodlight.
• Rated power: 90 W.
• Luminous flux: 9000 lm.
• Luminous efficacy: 100 lm/W.
• Color temperature: 4000 K.
• Light color: neutral white.
• Color rendering index: Ra ≥80.
• Color consistency: <5 SDCM.
• Light distribution: symmetrical.
• Beam angle: 100° x 100°.
• Motion sensor: no.
• Twilight sensor: no.
• Light source: integrated LED.
• Replaceable LED source: no.
• Driver: integrated.
• Dimmable: no.
• Low flicker: yes.
• Photobiological risk group: RG1.
• Rated voltage: 220-240 V.
• Frequency: 50-60 Hz.
• Rated current: 434 mA.
• Inrush current: 7.9 A.
• Inrush current duration: 1.9 µs.
• Power factor: >0.90.
• Total harmonic distortion: <20%.
• Surge protection L/N-PE: up to 4 kV.
• Surge protection L-N: up to 2 kV.
• Electrical protection class: Class I.
• Ingress protection: IP65.
• Impact resistance: IK08.
• Color: black.
• Housing material: aluminum.
• Cover material: tempered glass.
• Length: 236 mm.
• Width: 255 mm.
• Height: 40 mm.
• Net weight: 1.52 kg.
• Cable length: 1 m.
• Cable type: H05RN-F, 3 x 1.0 mm².
• Connection: 3-pole cable.
• Mounting: surface-mounted.
• Mounting location: wall, pole, or horizontal surface.
• Mechanically adjustable: yes.
• Use: outdoor.
• Maximum exposed wind area: 0.043 m².
• Operating temperature: -30 to +45 °C.
• Storage temperature: -40 to +70 °C.
• L70/B50 service life: 50,000 h at 25 °C.
• L80/B10 service life: 35,000 h at 25 °C.
• L90/B10 service life: 25,000 h at 25 °C.
• Switching cycles: 100,000.
• ULOR: 0% with 0° mounting.
• LEDVANCE warranty: 3 years.

9000 lm outdoor floodlight with neutral light

The OSRAM/LEDVANCE Floodlight Compact 4058075575004 combines 9000 lm with a symmetrical 100° x 100° optic to provide broad, uniform illumination. Its 4000 K output delivers a neutral white tone especially suitable for façades, parking areas, access points, and work zones where good visibility is required.

IP65 protection, IK08 resistance, aluminum housing, surge protection, and a service life of up to 50,000 hours complete a robust solution for residential, commercial, professional, and public-space installations.

Important: this reference corresponds to the standard FL COMP V version and does not include a motion sensor or twilight sensor. As a Class I luminaire, it must be correctly connected to the protective earth conductor.
