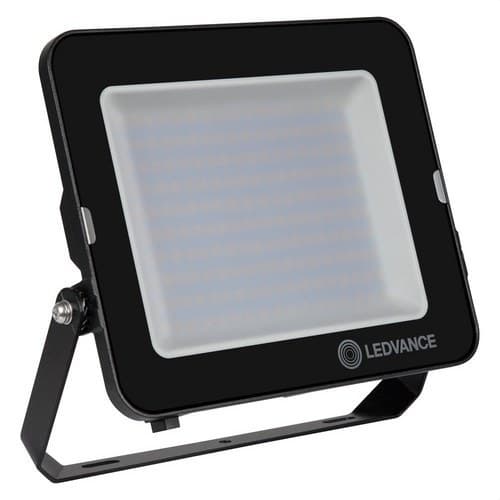

LED Projector FL COMP V 90W 865 100º BK 9000LM

The OSRAM/LEDVANCE Floodlight Compact LED projector, reference 4058075575080, is a 90 W outdoor luminaire that delivers a luminous flux of 9000 lm with 6500 K cool white light. Its symmetrical 100° x 100° light distribution makes it suitable for covering large surfaces, while its IP65 protection and IK08 mechanical resistance make it a robust solution for facades, parking areas, gardens, access points, public areas, and other outdoor applications.

With a luminous efficacy of 100 lm/W, black aluminum housing, and tempered glass cover, this projector combines a compact format with high light output. It includes an LED driver, 1-meter power cable, and surge protection, and offers an L70/B50 service life of up to 50,000 hours. This reference corresponds to the standard version and does not include a motion sensor or twilight sensor.

90 W LED projector with 9000 lm

The Floodlight Compact delivers a nominal luminous flux of 9000 lm with a power consumption of 90 W, achieving an efficacy of 100 lm/W. This relationship between power and flux provides intense lighting for outdoor surfaces without relying on conventional high-power halogen floodlights.

LEDVANCE presents this range as an alternative for replacing halogen floodlights, with energy savings that can reach up to 90% compared with certain traditional solutions.

6500 K cool white light

The 865 designation identifies a color temperature of 6500 K and a color rendering index Ra of 80 or higher. The result is a daylight-type cool white light, suitable for areas where a high sense of brightness and good visibility are desired.

The color consistency specified by the manufacturer is below 5 SDCM.

Symmetrical 100° x 100° optics

The floodlight uses a reflector-based symmetrical light distribution with a beam angle of 100° x 100°. This wide beam allows the light to be spread across facades, open areas, courtyards, access points, and other large surfaces.

LEDVANCE specifies an ULOR of 0% when the luminaire is installed at a 0° tilt, preventing direct upward light emission in that position.

IP65 outdoor protection

The IP65 protection rating provides complete protection against dust ingress and resistance to water jets, allowing the floodlight to be installed outdoors within the conditions established by the manufacturer.

It can be mounted on walls, poles, or horizontal surfaces using its adjustable mounting bracket.

IK08 mechanical resistance

The IK08 rating provides high resistance to accidental mechanical impacts. This feature is especially useful for parking areas, public spaces, commercial facilities, work zones, and other exposed outdoor environments.

Aluminum body and tempered glass

The housing is made of aluminum with a black finish, and the front cover uses tempered glass. The design combines mechanical strength, light weight, and thermal dissipation for the integrated LED and electronic components.

The luminaire also incorporates a ventilation membrane designed to optimize internal air exchange without compromising its IP protection rating.

Compact format of 236 x 255 x 40 mm

The floodlight measures 236 mm in length, 255 mm in width, and only 40 mm in height, with an approximate net weight of 1.52 kg.

Its mounting bracket features a 30° angle and a wide rotation range to direct the beam toward the surface to be illuminated.

Service life of up to 50,000 hours

LEDVANCE specifies an L70/B50 service life of 50,000 hours at an ambient temperature of 25 °C. For more demanding lumen maintenance criteria, 35,000 hours L80/B10 and 25,000 hours L90/B10 are declared.

The luminaire is also designed to withstand up to 100,000 switching cycles.

Integrated surge protection

The Floodlight Compact incorporates surge protection of up to 4 kV between line or neutral and protective earth, and up to 2 kV between line and neutral.

This protection provides greater robustness against certain electrical disturbances that may occur in the power supply network.

220-240 V power supply

The floodlight operates with a nominal voltage of 220-240 V AC and a frequency of 50/60 Hz. The nominal current is 434 mA and the power factor is greater than 0.90.

The specified inrush current is 7.9 A for approximately 1.9 µs.

Circuit sizing with multiple luminaires

LEDVANCE indicates the following maximum number of luminaires according to certain circuit breakers:

• B16 circuit breaker: up to 20 units.
• C10 circuit breaker: up to 15 units.
• C16 circuit breaker: up to 23 units.

These values are manufacturer data, and the final installation sizing must be carried out taking into account the actual circuit conditions and applicable electrical regulations.

Electrical protection class I

The luminaire belongs to Class I. Therefore, all conductive metal parts that could accidentally become live must remain connected to the protective earth conductor.

Installation must be carried out by qualified personnel following the manufacturer's instructions.

Pre-installed 1-meter H05RN-F cable

The floodlight includes a 1-meter flexible H05RN-F cable, made up of three 1.0 mm² conductors. This makes connection to the outdoor electrical installation easier.

The external terminal block is not included. LEDVANCE also states that the external flexible cable is not replaceable; if it is damaged, the luminaire must no longer be used.

Integrated LED source and driver

The LED light source is integrated into the luminaire and is not intended to be replaced. The electronic driver is also built into the unit.

This version is not dimmable with a conventional dimmer.

Low flicker and Ra ≥80

LEDVANCE classifies the floodlight as low flicker. Its color rendering index Ra ≥80 provides suitable color rendering for general outdoor lighting applications.

The specified photobiological safety group is RG1 according to EN 62778 and EN 62471.

Wide temperature range

The Floodlight Compact can operate at ambient temperatures between -30 and +45 °C. For storage, the manufacturer specifies a range of -40 to +70 °C.

This range makes it suitable for outdoor use in environments subject to significant temperature variations throughout the year.

Applications of the Floodlight Compact 90 W

• Building facades.
• Parking areas.
• Access points and entrances.
• Gardens and patios.
• Balconies and terraces.
• Outdoor common areas.
• Public areas.
• Construction sites.
• Commercial and professional installations.
• Replacement for traditional halogen floodlights.

Technical features of OSRAM/LEDVANCE 4058075575080

• Brand: OSRAM / LEDVANCE.
• Reference / GTIN: 4058075575080.
• Model: FL COMP V 90W 865 SYM 100 BK.
• Range: FLOODLIGHT COMPACT 90W.
• Type: outdoor LED floodlight.
• Rated power: 90 W.
• Luminous flux: 9000 lm.
• Luminous efficacy: 100 lm/W.
• Color temperature: 6500 K.
• Light color: cool white / Cool Daylight.
• Color rendering index: Ra ≥80.
• Color consistency: <5 SDCM.
• Light distribution: symmetrical.
• Beam angle: 100° x 100°.
• Motion sensor: no.
• Twilight sensor: no.
• Light source: integrated LED.
• Replaceable LED source: no.
• Driver: integrated.
• Dimmable: no.
• Low flicker: yes.
• Photobiological risk group: RG1.
• Rated voltage: 220-240 V.
• Frequency: 50-60 Hz.
• Rated current: 434 mA.
• Inrush current: 7.9 A.
• Inrush current duration: 1.9 µs.
• Power factor: >0.90.
• Total harmonic distortion: <20%.
• Surge protection L/N-PE: up to 4 kV.
• Surge protection L-N: up to 2 kV.
• Electrical protection class: Class I.
• Protection rating: IP65.
• Impact resistance: IK08.
• Color: black.
• Body material: aluminum.
• Cover material: tempered glass.
• Length: 236 mm.
• Width: 255 mm.
• Height: 40 mm.
• Net weight: 1.52 kg.
• Cable length: 1 m.
• Cable type: H05RN-F, 3 x 1.0 mm².
• Connection: 3-pole cable.
• Mounting: surface-mounted.
• Mounting location: wall, pole, or horizontal surface.
• Mechanically adjustable: yes.
• Use: outdoor.
• Maximum exposed wind area: 0.043 m².
• Operating temperature: -30 to +45 °C.
• Storage temperature: -40 to +70 °C.
• L70/B50 service life: 50,000 h at 25 °C.
• L80/B10 service life: 35,000 h at 25 °C.
• L90/B10 service life: 25,000 h at 25 °C.
• Switching cycles: 100,000.
• ULOR: 0% at 0° tilt.
• LEDVANCE warranty: 3 years.

High-brightness outdoor floodlight with 6500 K

The OSRAM/LEDVANCE Floodlight Compact 4058075575080 combines 9000 lm, an efficacy of 100 lm/W, and symmetrical 100° optics to illuminate large outdoor areas. Its 6500 K tone provides a cool white light especially suited to areas where visibility and a high sense of brightness are priorities.

IP65 protection, IK08 resistance, aluminum housing, surge protection, and a service life of up to 50,000 hours complete a robust solution for residential, commercial, professional, and public-space installations.

Important: this reference corresponds to the standard FL COMP V version and does not include a motion sensor or twilight sensor. As a Class I luminaire, it must be correctly connected to the protective earth conductor.
