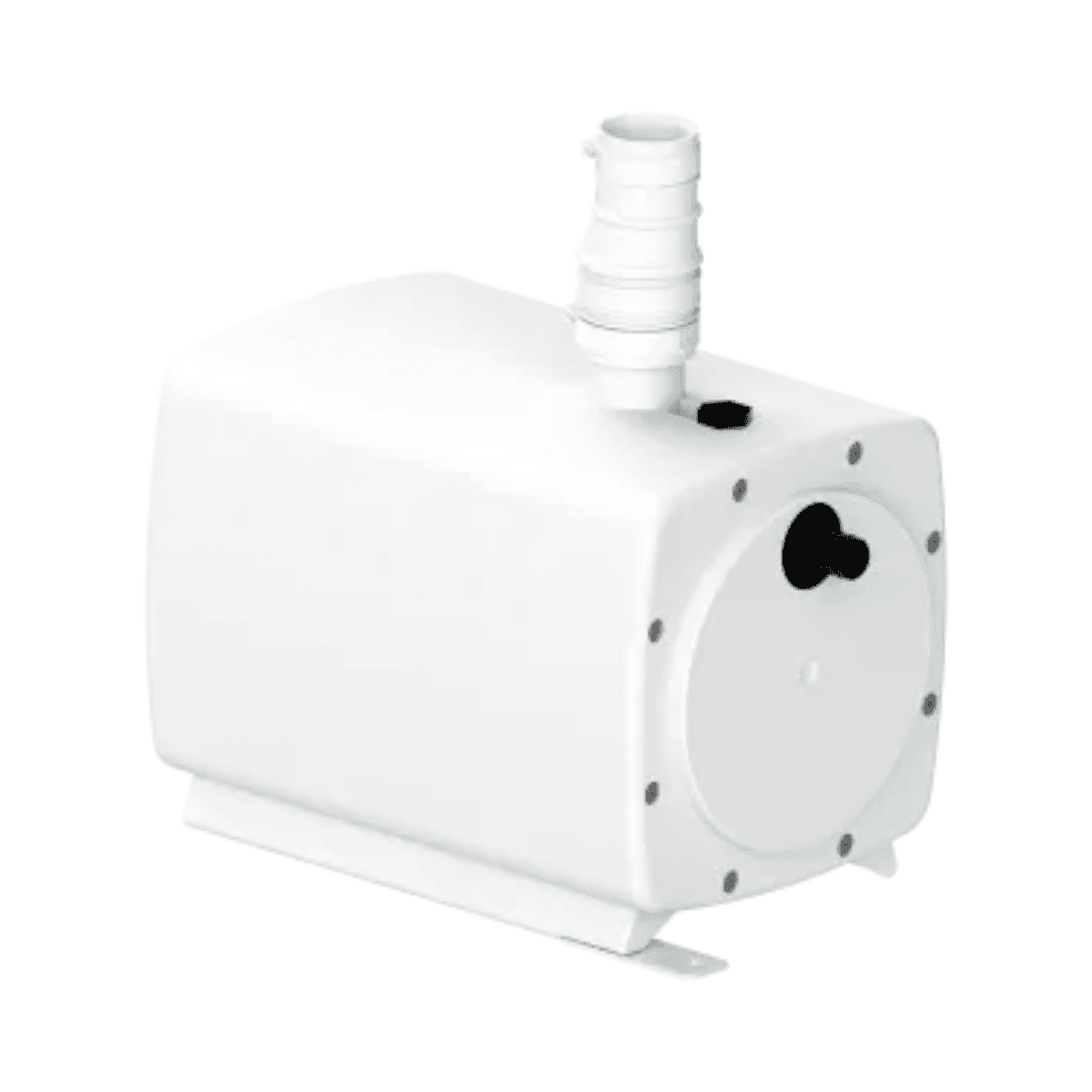

SFA Sanifloor+ 2 Shower Drain Suction Water Pump

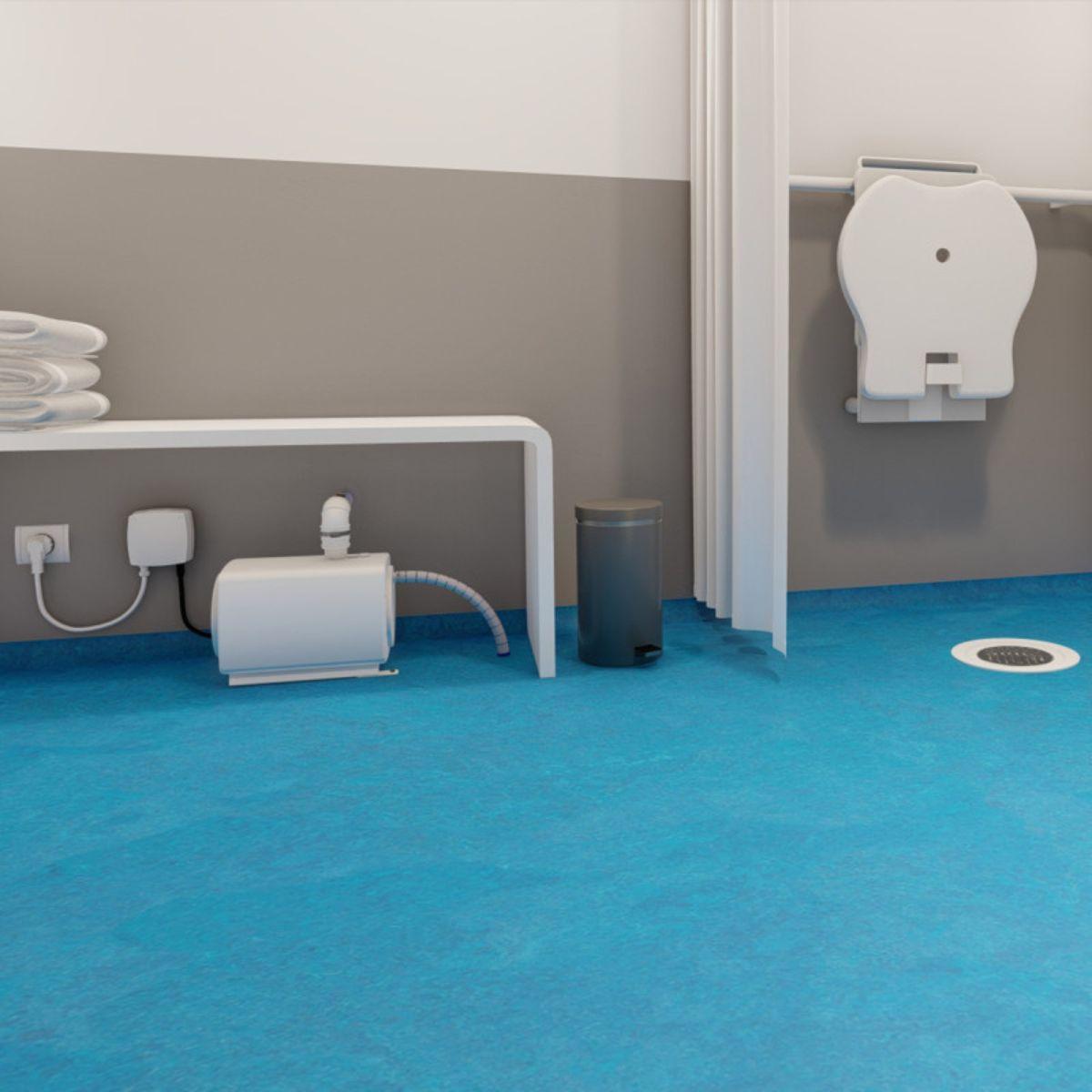

The SFA Sanifloor+ 2 suction water pump is specially developed to evacuate wastewater from showers with vinyl floors, allowing for accessible, modern, and efficient installations even when there is no sloped drainage. This model combines suction technology, wireless connectivity, and high-quality components to meet the demands of technical renovations in adapted bathrooms, homes, hotels, or care centers.

Sanifloor+ 2 is a complete set consisting of a silent suction pump, a watertight design siphon with a detection system, a remote control box, 3 meters of steel-reinforced spiral hose, a non-return valve, and a removable hair filter. Its total height is only 68 mm, allowing for perfect integration under vinyl floors without the need for deep construction work.

The system operates automatically thanks to the water level detection in the siphon: when water enters, the sensor sends a wireless signal to the control box that activates the pump. The water is then suctioned and pumped to the main drain, even if it is up to 3 meters higher or 30 meters away horizontally. This system comes factory-paired, requiring no configuration by the installer.

With a drainage flow rate of up to 30 liters per minute at 1 meter height, Sanifloor+ 2 is ready for high-flow showers. Additionally, it incorporates an easily accessible, removable, and washable hair filter, as well as a detection module that can be easily replaced, facilitating maintenance and prolonging the system's lifespan.

Manufactured in France by SFA, Sanifloor+ 2 combines technical reliability with smart design to meet the aesthetic and functional requirements of the most demanding renovations.

Included Components

• 400 W suction pump with remote control box
• Vinyl floor siphon with paired level sensor
• 3 m of steel spiral hose (Ø16 mm) cuttable
• Straight sleeve with pre-installed non-return valve
• Removable and washable hair filter

Technical Specifications

• Application: Italian shower / vinyl floor
• Shower tray height: 0 cm (floor-level installation)

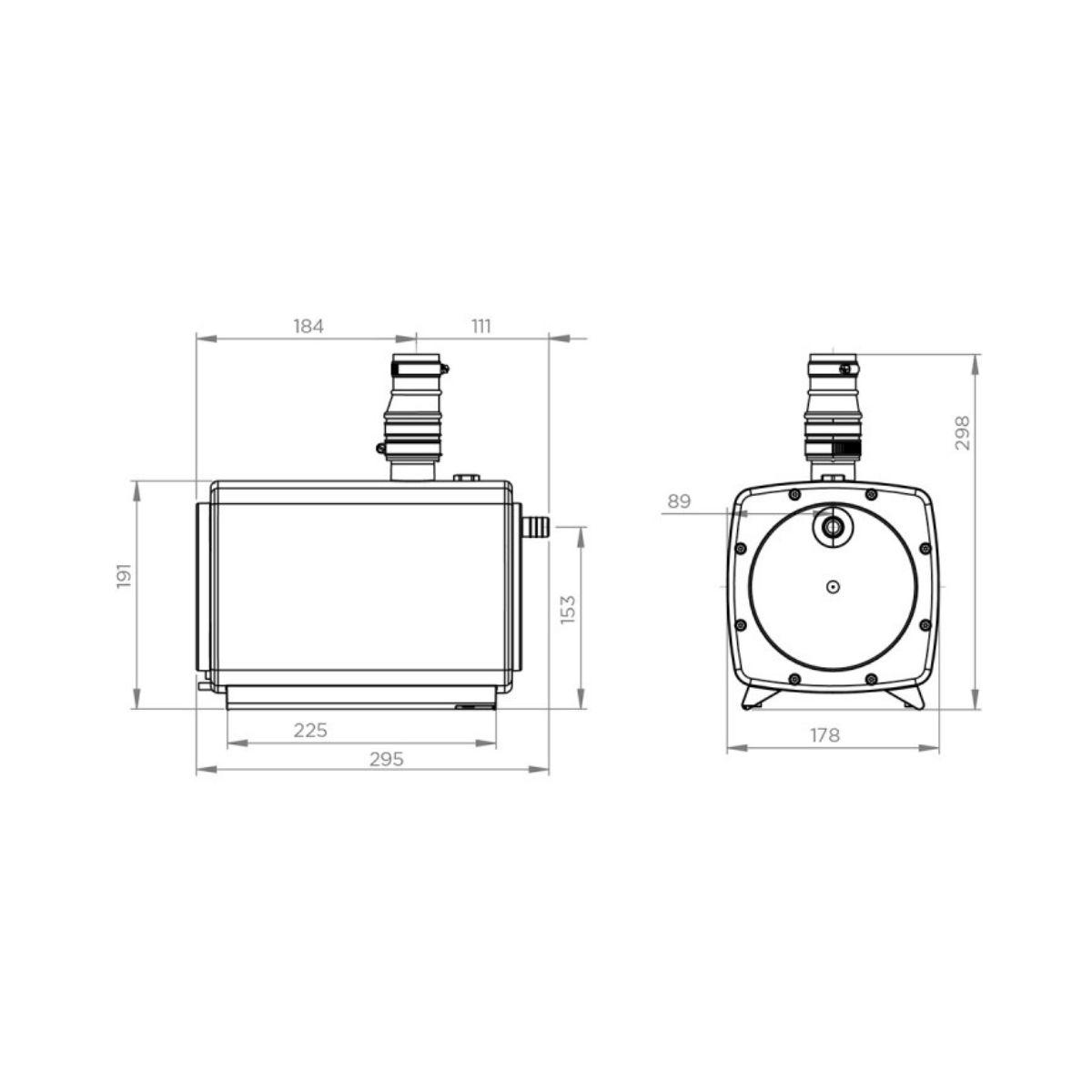

• Total system height: 68 mm
• Maximum flow rate: 30 L/min at 1 m height
• Maximum vertical return: 3 m
• Maximum horizontal return: 30 m
• Drain outlet diameter: 16 mm
• Recommended evacuation diameter: 32 mm
• Number of inlets: 1
• Drain material: ABS / stainless steel

Electrical Features

• Power supply voltage: 220-240 V / 50 Hz
• Motor consumption: 400 W
• Maximum absorbed current: 1.7 A
• Electrical class: I
• Protection index: IP44
• Maximum water temperature: 35 °C

Main Advantages

• Allows floor-level shower installations in any location
• Powerful evacuation with integrated wireless level sensor
• Easily accessible hair filter and optimized maintenance
• Complete system ready to install, no additional adjustments needed
• French manufacturing with quality guaranteed by SFA

The SFA Sanifloor+ 2 pump is a reliable and aesthetic technical solution that allows shower spaces to be adapted to accessibility and design needs, ensuring powerful, safe, and hassle-free installation evacuation.
