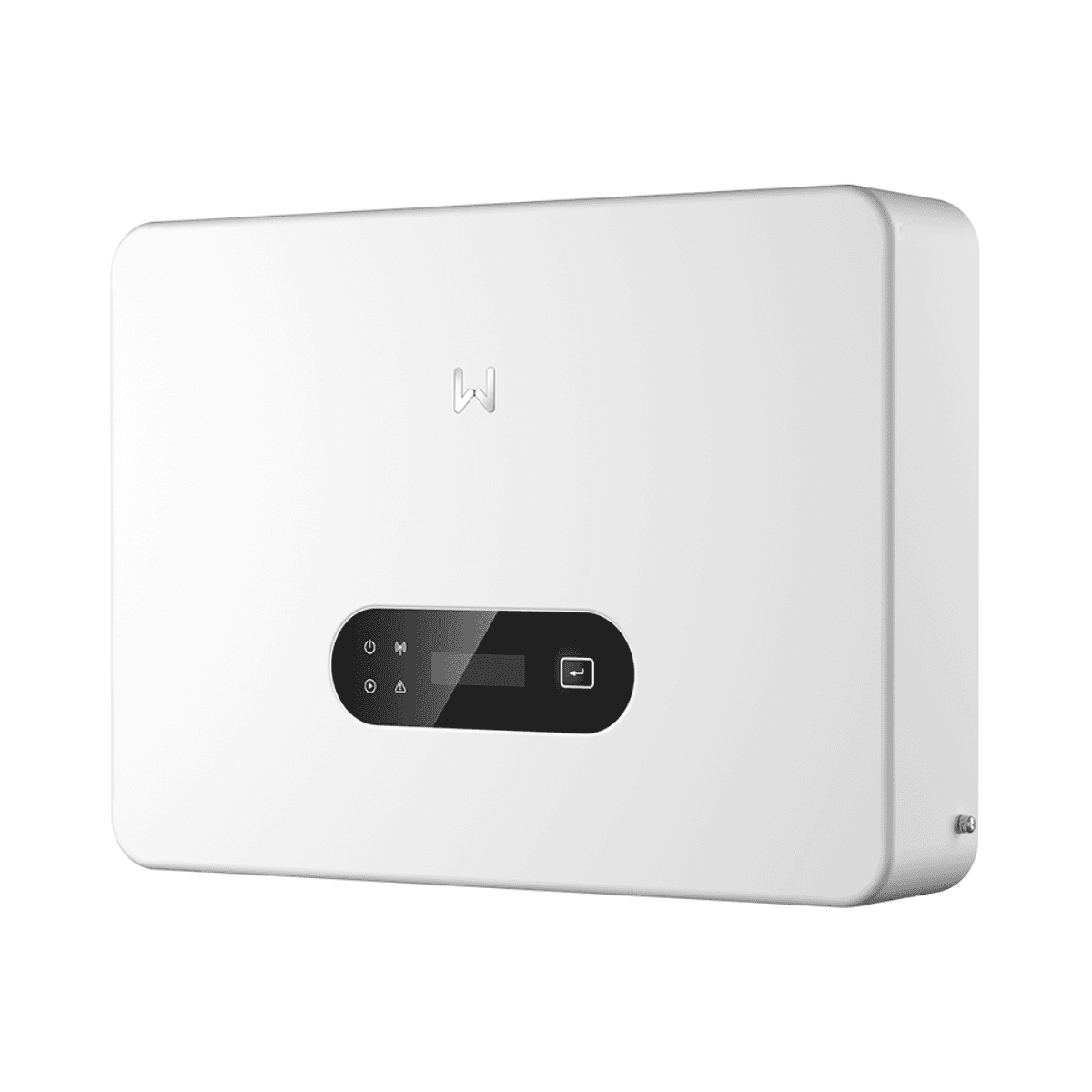

GoodWe GW10K-MS-G40 10 kW Single-Phase Solar Inverter 3 MPPT

The GoodWe GW10K-MS-G40 single-phase solar inverter is a 10 kW string inverter belonging to the fourth generation of the MS G4 series. Specially designed for residential photovoltaic installations, it incorporates 3 independent MPPT trackers that provide great flexibility for distributing panels across different orientations, tilts, or areas with varying irradiance conditions.

Its architecture supports up to 20 A of input current per MPPT, is compatible with modern high-power photovoltaic modules, and allows PV oversizing of up to 200% according to GoodWe. These features are complemented by a maximum efficiency of 97.9%, natural convection cooling, IP66 protection, and acoustic operation below 30 dB.

10 kW single-phase inverter with 3 MPPTs

The GoodWe GW10K-MS-G40 delivers a rated output power of 10,000 W and is designed for single-phase 220, 230, or 240 V grids. Its main advantage over inverters with one or two maximum power point trackers is the inclusion of 3 independent MPPTs, each capable of handling one PV string.

This configuration makes it easier to design installations with complex roofs, different module orientations, or areas with partial shading, since each group of panels connected to an MPPT can operate independently to find its own maximum power point.

20 A input per MPPT for high-power modules

Each of the three MPPTs supports a maximum input current of 20 A and a maximum short-circuit current of 26 A. These characteristics make it possible to work with high-current photovoltaic modules and offer greater flexibility when selecting panels.

The inverter supports a maximum input voltage of 600 V, while the MPPT operating range is between 40 and 560 V. The start-up voltage is only 50 V and the nominal input voltage is 360 V.

PV oversizing of up to 200%

GoodWe states that the MS G4 series allows PV oversizing of up to 200%. This makes it possible to install a higher module power than the inverter’s rated output power when the design and electrical conditions of the PV array allow it.

Combined with the low start-up voltage and the three independent MPPTs, this design margin is intended to maximize photovoltaic generation throughout the day, including periods of lower irradiance.

Maximum efficiency of 97.9%

The GW10K-MS-G40 achieves a maximum efficiency of 97.9% and a European efficiency of 97.3%. Its maximum active output power is 10,000 W and the maximum apparent power also reaches 10,000 VA.

The maximum output current is 45.5 A. The power factor is approximately 1 and can be adjusted from 0.8 capacitive to 0.8 inductive, while total harmonic distortion remains below 3%.

Integrated AC and DC protections

GoodWe equips the MS G4 series with different systems designed to protect both the inverter and the photovoltaic installation. The GW10K-MS-G40 includes PV reverse polarity protection, insulation resistance monitoring, residual current monitoring, anti-islanding protection, and overcurrent, short-circuit, and AC overvoltage protection.

It also includes a DC switch and Type II SPD surge protection on both the DC and AC sides.

• String current monitoring: integrated.
• PV insulation resistance detection: integrated.
• Residual current monitoring: integrated.
• PV reverse polarity protection: integrated.
• Anti-islanding protection: integrated.
• AC overcurrent protection: integrated.
• AC short-circuit protection: integrated.
• AC overvoltage protection: integrated.
• DC switch: integrated.
• DC surge protection: Type II SPD.
• AC surge protection: Type II SPD.
• Remote shutdown: integrated.

Optional AFCI 3.0 for arc fault protection

The MS G4 series can optionally include AFCI 3.0 with AI-assisted arc fault detection. This function is designed to identify DC arc situations and interrupt operation when risk conditions are detected.

GoodWe also includes Rapid Shutdown 2.0 with integrated transmitter among the safety solutions available for this inverter generation.

Connectivity and monitoring

The GoodWe GW10K-MS-G40 offers different communication options to facilitate integration and supervision of the photovoltaic installation. The technical datasheet includes RS485, WiFi, LAN, Bluetooth, and 4G interfaces, depending on the accessories and configuration used.

The communication protocol is Modbus RTU compatible with SunSpec. The local interface includes LED indicators and supports an optional LCD screen, as well as WLAN connectivity and app control.

Parallel connection with DNS G4

The MS G4 series is prepared to work in mixed parallel installations with GoodWe DNS G4 inverters using the EzLink3000 communication device. According to GoodWe, this architecture allows systems of up to 10 inverters to be connected without the need for an external datalogger.

This makes it easier both to expand a photovoltaic installation later and to create modular systems when a higher total power output is required.

Quiet operation by natural convection

The GW10K-MS-G40 uses natural convection cooling, avoiding the need for fans during normal cooling operation. GoodWe states a sound emission below 30 dB, a particularly interesting feature for residential installations where the inverter may be located near living areas.

Self-consumption at night is below 1 W and the unit is designed to operate in an ambient temperature range from -25 to +60 °C.

IP66 protection for versatile installation

The inverter has an IP66 protection rating, providing a high level of enclosure protection against dust and water ingress. This expands the possible installation locations, always respecting the conditions, distances, and mounting recommendations established by GoodWe.

It can operate with relative humidity from 0 to 100% and at altitudes of up to 4000 meters above sea level within the conditions specified by the manufacturer.

Compact 16 kg design

The GoodWe GW10K-MS-G40 measures 493 x 365 x 187 mm and weighs 16 kg. Its compact format makes handling and installation easier, especially considering its 10 kW rated power and the inclusion of three MPPT trackers.

The PV inputs use MC4 connectors for 4 to 6 mm² conductors, while the AC output uses a plug and play connector compatible with conductors up to 16 mm².

Technical specifications of the GoodWe GW10K-MS-G40

• Brand: GoodWe.
• Reference: GW10K-MS-G40.
• Series: MS G4.
• Type: string solar inverter.
• Grid: single-phase.
• Rated output power: 10,000 W.
• Rated apparent power: 10,000 VA.
• Maximum AC active power: 10,000 W.
• Maximum AC apparent power: 10,000 VA.
• Rated output voltage: 220 / 230 / 240 V, L / N / PE.
• Rated frequency: 50 / 60 Hz.
• Maximum output current: 45.5 A.
• Power factor: approximately 1, adjustable from 0.8 capacitive to 0.8 inductive.
• Maximum total harmonic distortion: <3%.
• Number of MPPTs: 3.
• Number of strings per MPPT: 1.
• Maximum PV input voltage: 600 V.
• MPPT operating range: 40-560 V.
• Start-up voltage: 50 V.
• Nominal input voltage: 360 V.
• Maximum current per MPPT: 20 A.
• Maximum short-circuit current per MPPT: 26 A.
• PV oversizing: up to 200% according to GoodWe.
• Maximum efficiency: 97.9%.
• European efficiency: 97.3%.
• Cooling: natural convection.
• Sound emission: <30 dB.
• Night consumption: <1 W.
• Protection rating: IP66.
• Operating temperature range: -25 to +60 °C.
• Relative humidity: 0-100%.
• Maximum operating altitude: 4000 m.
• Topology: transformerless.
• Communication: RS485, WiFi, LAN, Bluetooth, and 4G.
• Protocol: Modbus RTU compatible with SunSpec.
• Interface: LED, optional LCD, and WLAN + app.
• DC SPD protection: Type II.
• AC SPD protection: Type II.
• AFCI: optional.
• Dimensions: 493 x 365 x 187 mm.
• Weight: 16 kg.
• DC connectors: MC4 for 4-6 mm² conductors.
• AC connection: plug and play connector for up to 16 mm².

Especially suitable for complex photovoltaic roofs

The three independent MPPTs make the GoodWe GW10K-MS-G40 a particularly interesting solution for installations where modules must be distributed across different orientations or tilts. Compared with an architecture with fewer MPPT trackers, it provides greater independence between the different photovoltaic strings.

The combination of 10 kW single-phase power, 20 A inputs per MPPT, PV oversizing of up to 200%, maximum efficiency of 97.9%, IP66 protection, and operation below 30 dB provides a complete solution for residential solar installations that require power, design flexibility, and broad communication options.

Important: string sizing, connected PV power, module voltages and currents, and external protections must be calculated according to GoodWe specifications and the regulations applicable to each installation.
