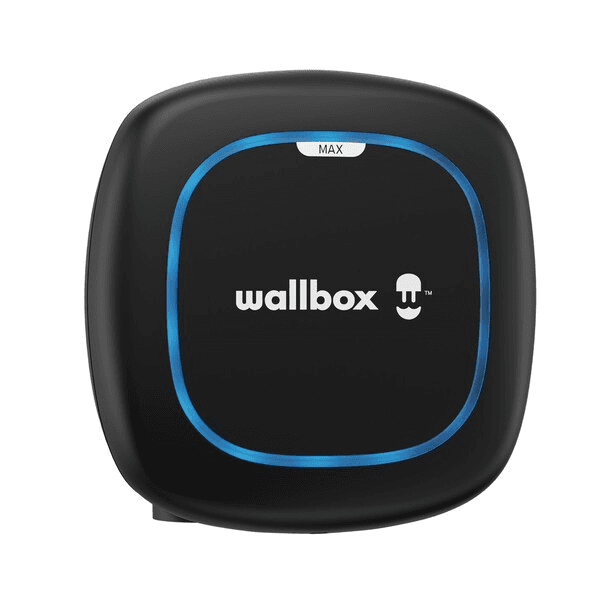

Single-Phase Electric Car Charger 7.4 kW Wallbox Pulsar Max 5 Meter Cable Type 2

The Wallbox Pulsar Max PLP4-0-2-2-9-002 is a smart charger for electric and plug-in hybrid cars, specially designed for home installations. This version delivers a maximum charging power of 7.4 kW in single-phase, includes a fixed 5-meter cable with a Type 2 connector, and comes in black, offering a compact and connected solution for daily vehicle charging.

Its WiFi and Bluetooth connectivity allows it to be managed through the Wallbox app, where it is possible to start or stop sessions, schedule charging times, limit power, and check consumption information. In addition, the Pulsar Max is ready to incorporate advanced energy management functions, such as solar charging and dynamic power management, when combined with a compatible Wallbox energy meter.

Single-phase charging up to 7.4 kW

The Wallbox Pulsar Max PLP4-0-2-2-9-002 is designed for 230 V single-phase installations and provides a maximum charging power of 7.4 kW with a rated current of 32 A. The current can be configured from 6 A up to its rated value, allowing the charger power to be adapted to the characteristics of the available electrical installation.

Charging is carried out in Mode 3 according to IEC 61851-1, the standard system for dedicated electric vehicle charging points installed in homes, garages, and parking areas.

5-meter fixed cable with Type 2 connector

This model includes a 5-meter charging cable with a Type 2 connector according to IEC 62196-2 as standard. As it remains attached to the charger, it allows the vehicle to be connected directly without having to remove and store a separate charging cable each time it is used.

The Type 2 connector is widely used in electric and plug-in hybrid vehicles sold in Europe. Compatibility and effective charging power will also depend on the vehicle's onboard charger.

WiFi and Bluetooth for control from the Wallbox app

The Pulsar Max features WiFi and Bluetooth connectivity for setup and management from the Wallbox app. Once paired, the user can check the charger status and control different functions from a compatible smartphone.

Available functions on the Wallbox platform include starting and stopping sessions, locking and unlocking the charger, setting power limits, scheduling charging times, and viewing usage and energy statistics.

WiFi connectivity enables remote access to the charger's connected functions, while Bluetooth facilitates local communication during setup and when the user is near the unit.

Charging scheduling to take advantage of the best time slots

Through the Wallbox app, it is possible to schedule charging sessions to take place at specific times of the day. This feature is especially useful for taking advantage of time-of-use electricity tariffs or shifting vehicle consumption to periods of lower demand.

The Pulsar Max is also compatible with Wallbox smart charging functions, whose exact availability may depend on the charger configuration, internet connection, market, and the vehicle used.

Ready for solar surplus charging

The charger is compatible with Wallbox solar charging. Combined with a compatible Wallbox power meter, it can use surplus energy from a photovoltaic installation to recharge the electric car.

Energy management makes it possible to configure the system to take advantage of available solar generation and reduce the energy drawn from the grid. To activate these functions, the corresponding compatible energy meter must be installed; it is not included with the charger unless expressly stated in the supply.

Dynamic power management

The Pulsar Max is also compatible with dynamic load management. Using a compatible energy meter, the system can monitor the home's consumption and adapt the power allocated to the electric car according to the available electrical capacity.

This function helps coordinate vehicle charging with the rest of the home's electrical loads and makes better use of the available installation power. The manufacturer also includes static load management functions within the unit's capabilities.

IP55 and IK10 protection for indoor and outdoor use

The Wallbox Pulsar Max has an IP55 protection rating and IK10 mechanical resistance. These features provide a high level of protection against dust and water ingress and against mechanical impacts, allowing the charger to be used both indoors and in suitable outdoor locations.

Its operating temperature range extends from -30 to 50 °C. Wallbox specifies full-capacity operation up to 40 °C; above this temperature, power reduction may apply to protect the unit.

Protection against DC residual currents

The charger incorporates 6 mA DC leakage detection via an internal RDC-DD. This device complies with the trip time characteristics established by IEC 62955.

The installation must be complemented by the external electrical protections required by Wallbox, local electrical regulations, and the installation design. The manufacturer states that installation, testing, and commissioning must be carried out by qualified electrical personnel.

The official structure of reference PLP4-0-2-2-9-002 also identifies code “9” as the version equipped with welding protection.

Compact and durable design

The Pulsar Max stands out for its compact format, with dimensions of just 198 x 201 x 99 mm excluding the cable. The charger weighs approximately 1.3 kg without the cable.

Its reduced size makes it easy to install on garage walls, parking spaces, and other charging areas, while keeping the cable available for direct vehicle connection.

Halo RGB light indicator

The front panel includes a Halo RGB indicator that visually shows the status of the charging point. This signaling is complemented by the information available through the Wallbox app and portal.

Technical specifications of the Wallbox Pulsar Max PLP4-0-2-2-9-002

• Brand: Wallbox.
• Reference: PLP4-0-2-2-9-002.
• Model: Pulsar Max PLP4.
• Color: black.
• Type: smart electric vehicle charger.
• Electrical installation: single-phase.
• Maximum charging power: 7.4 kW.
• Rated voltage: 230 V AC ±10%.
• Rated current: 32 A.
• Configurable current: from 6 A to 32 A.
• Frequency: 50/60 Hz.
• Charging mode: Mode 3 according to IEC 61851-1.
• Connector: Type 2 according to IEC 62196-2.
• Output type: fixed cable.
• Cable length: 5 m.
• Connectivity: WiFi and Bluetooth.
• Control: Wallbox app and portal.
• Status indicator: Halo RGB LED.
• Static load management: included.
• Dynamic load management: compatible via additional meter.
• Solar charging: compatible via Wallbox power meter.
• External communication: compatible with OCPP, partner API, and SDK.
• Residual current detection: 6 mA DC via internal RDC-DD.
• Welding protection: yes, according to reference coding.
• Overvoltage category: CAT III.
• Protection rating: IP55.
• Impact resistance: IK10.
• Operating temperature: -30 to 50 °C.
• Full-power operation: up to 40 °C.
• Storage temperature: -40 to 70 °C.
• Dimensions without cable: 198 x 201 x 99 mm.
• Weight without cable: 1.3 kg.
• Maximum supply cable cross-section: up to 13 mm².
• EAN: 8436607548973.

Ideal for daily home charging

With 7.4 kW of power, the Wallbox Pulsar Max PLP4-0-2-2-9-002 makes it possible to take advantage of a single-phase installation of up to 32 A for home charging of compatible electric vehicles. Its fixed 5-meter cable makes daily use easier, as you only need to park the vehicle and connect the Type 2 cable.

The combination of WiFi, Bluetooth, time scheduling, control via the Wallbox app, and compatibility with dynamic management and solar energy makes the Pulsar Max a particularly complete solution for those looking to integrate electric car charging into the home's energy management.

Important: dynamic load management and solar charging functions require a compatible Wallbox power meter, which may not be included with the charger. The installation of the charging point and its electrical protections must be carried out by qualified personnel in accordance with Wallbox instructions and applicable regulations.
